Ilsco CPM-500 Pigtail Adaptor - Copper, 500 MCM, Stranded, 600 V, Silver
Normally In Stock
Code: 588403
Ilsco CPM-500 - Copper Compression Pigtail Adaptor, Conductor Size 500, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$132.91
Sale Price
$102.24
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

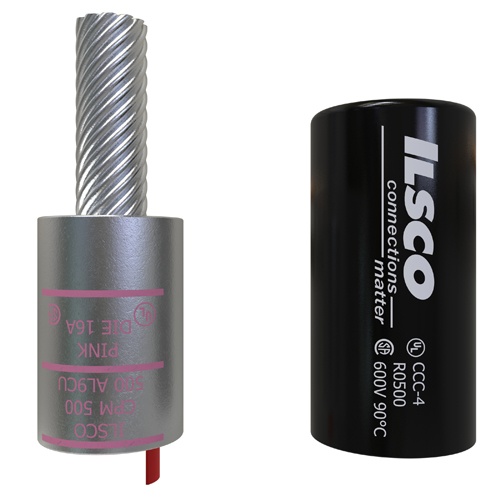

Ilsco CPM-500 - The Copper Compression Pigtail Adaptor is a dual rated connector with UL, CSA, NEMA approval. Made of copper with tin plating, it accommodates 500 kcmil stranded aluminum conductors. Featuring DE-OX® technology, this 600V adaptor has a temperature rating of 90°C. Measuring 1.375" in diameter, it comes with an insulating cover.
Specifications
Color
Silver
Manufacturer
Ilsco
Terminal for Wire Gauge
500 MCM
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
1
Component
Pigtail Adaptor
Features
Barrel manufactured from high strength aluminum alloy
Pigtail manufactured from high conductivity copper
Chamfered barrel
UL Listed and CSA Certified for 600 volts, 90˚ C
Clearly marked with wire size and die index for ILSCO tools, proper number and location of crimps
Prefilled with DE-OX
Color coded end caps inserted in barrel
Supplied with insulating cover
Rated for full ampacity of incoming conductor
