Code: 588965

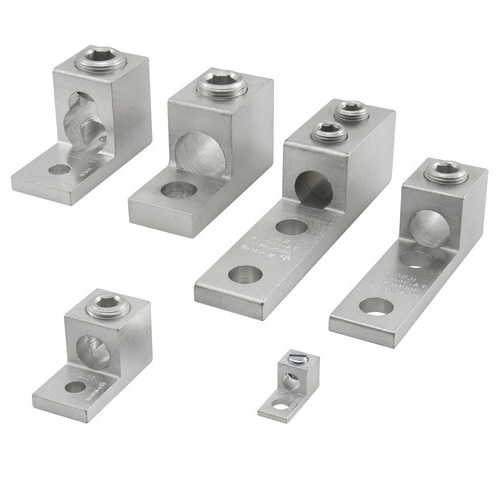

Ilsco TA-600-2NS Mechanical Lug - Aluminum, 600-2 AWG, Stranded, 35 kV
Normally In Stock
Ilsco TA-600-2NS - Aluminum Mechanical Lug, Conductor Range 600-2, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$46.10
Sale Price
$35.46
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco TA-600-2NS - Aluminum Mechanical Lug with a conductor range of 600-2 kcmil, 1 port, and 2 holes. Tin plated for durability, UL and CSA certified. Suitable for 35kV voltage rating, with 90°C temperature rating. Dual rated for copper and aluminum conductors. Mounting holes spaced 1-3/4in apart, 1/2in bolt size. Ideal for mechanical connections in electrical applications.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Terminal for Wire Gauge
600-2 AWG
Component
Mechanical Lug
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
