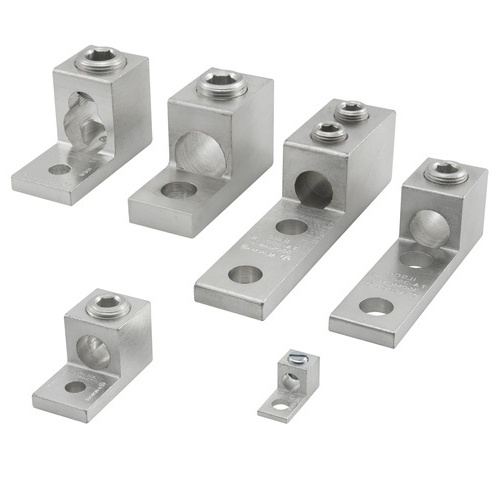

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 588964
Ilsco TA-600-2N Mechanical Lug - Aluminum, 600-2 AWG, Stranded, 35 kV
Normally In Stock
Ilsco TA-600-2N - Aluminum Mechanical Lug, Dual Rated, Conductor Range 600-2, 1 Port, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, 2 Screws, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$56.95
Sale Price
$43.81
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco TA-600-2N - Aluminum Mechanical Lug, Dual Rated for 600-2 Conductor Range, 1 Port with 2 Holes, 1/2in Bolt Size, Tin Plated, UL and CSA Listed, 35kV Voltage Rating. Suitable for stranded copper and aluminum conductors. Mounting Hole Spacing 1-3/4in, Tang Dimensions 0.375in Thickness x 3.25in Length x 1.375in Width. Drive Size 1/2, Torque 500.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Terminal for Wire Gauge
600-2 AWG
Component
Mechanical Lug
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
