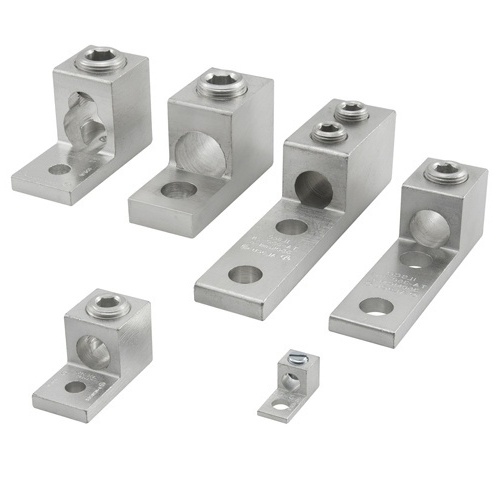

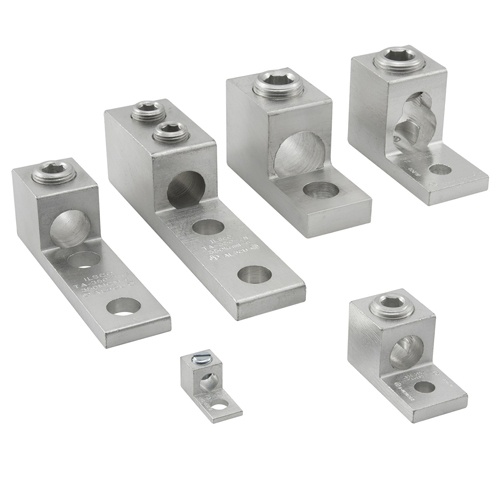

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Ilsco TA-600 Mechanical Lug - Aluminum, 600-2 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 588708
Ilsco TA-600 - Aluminum Mechanical Lug, Conductor Range 600-2, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$28.61
Sale Price
$22.01
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco TA-600 - Aluminum Mechanical Lug with 1 port, 1 hole, and 3/8in bolt size. Conductor range 600 kcmil - 2 Str. Rated for 35kV and 90°C. Tin-plated with UL and CSA listings. Suitable for stranded aluminum conductors. Mounting hole diameter 0.406in, drive size 1/2in, and torque rating of 500 in-lbs. ROHS compliant.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
1
Terminal for Wire Gauge
600-2 AWG
Component
Mechanical Lug
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
