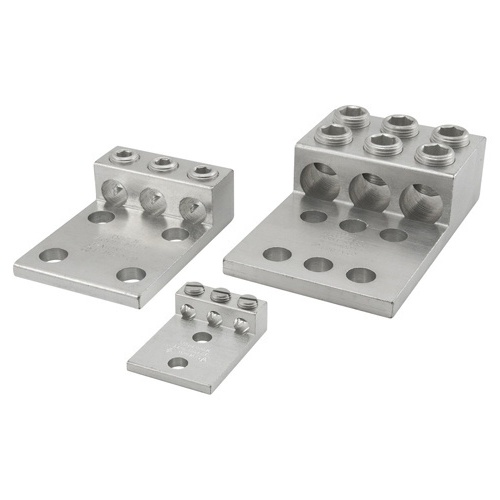

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

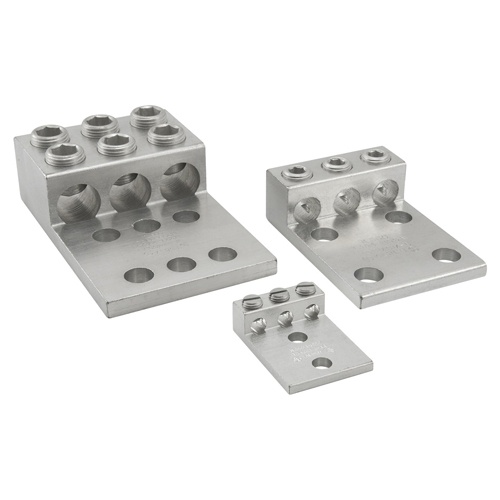

Ilsco T3A2-800N Mechanical Lug - Aluminum, 800-350 MCM, Stranded, 35 kV
Normally In Stock
Code: 587643
Ilsco T3A2-800N - Aluminum Mechanical Lug, Dual Rated, Conductor Range 800-350, 3 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA, Same as T3A4-800N
Condition: New
CALL FOR LEAD TIME$555.14
Sale Price
$427.03
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco T3A2-800N - Aluminum Mechanical Lug, Dual Rated for 800-350 conductor range, 3 ports, 6 holes, 1/2in bolt size, 1-3/4in hole spacing. Tin plated with UL & CSA certifications. Suitable for 35 kV voltage, 90°C temperature rating. Conductor materials include copper and aluminum. Mounting hole type: Thru. Dimensions: 0.625in x 4.125in x 3.625in.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
3
Component
Mechanical Lug
Terminal for Wire Gauge
800-350 MCM
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation t echniques must be used
Must be mounted with a minimum of 2 bolts
Rated to 90˚ C
