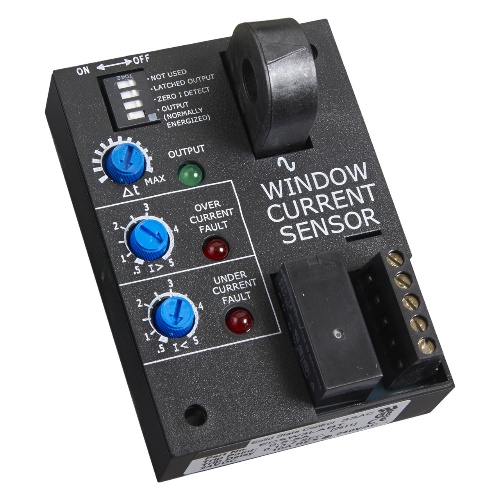

Littelfuse ECSW6MBHT Current Monitoring - 230 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565323
Littelfuse ECSW6MBHT - ECSW Series - 230 Volt - Surface mount with two #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$298.81
Sale Price
$249.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ECSW6MBHT is a versatile voltage sensor with a load rating of 10A resistive @ 240V, 1/4 hp @ 125V, and 1/2 hp @ 250V. It features 5mm terminal blocks for wire termination and supports up to #12 AWG wire. With 50/60Hz AC line frequency and -20% to 10% input tolerance, this sensor ensures reliable performance. It also offers surge protection, a response time of ≤75ms, and a sensor range of 50A (steady) and 300A (inrush for 10s). The sensor mode supports over and undercurrent trip points, with adjustable trip point range of 2-20 and trip delay sensing on startup from 0.1-6s. The undercurrent trip point is <250mA turns.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
230 Volt
Relay Mounting
Surface Mount
Relay Timing Range
0.5 - 50 S
Features
Built-in toroidal current sensing
Encapsulated
Adjustable mode, trip point and trip delay
10A, SPDT isolated relay output
