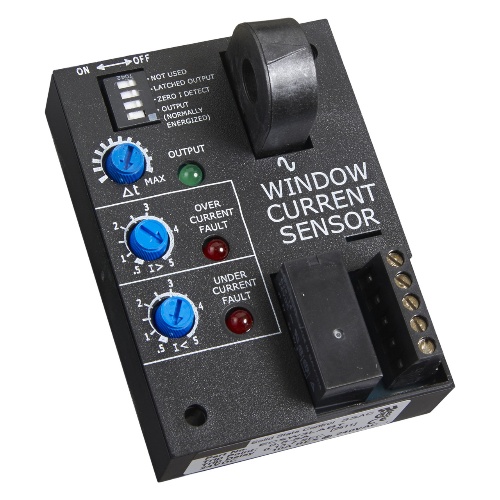

Littelfuse ECSW3LABT Current Monitoring - 24 Volt (DC), Double Throw, Single Pole
Normally In Stock
Code: 565317
Littelfuse ECSW3LABT - ECSW Series - 24 Volt (DC) - Surface mount with two #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$298.81
Sale Price
$249.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ECSW3LABT is a reliable and versatile surge protection device. With an output load rating of 10A resistive @ 240V, it can handle various loads. It offers a wide input tolerance range and operates in high humidity conditions. With a response time of ≤75ms and peak detection, it provides effective surge protection. The included toroid sensor supports steady and inrush current detection. The trip point range is adjustable from 0.5 to 5, and the trip delay sensing on startup can be set between 0.1 and 6 seconds. It is suitable for use with #4 AWG wire and meets IEEE C62.41-1991 Level A standards.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Surface Mount
Coil Voltage Rating
24 Volt (DC)
Relay Timing Range
0.15 - 7 S
Features
Built-in toroidal current sensing
Encapsulated
Adjustable mode, trip point and trip delay
10A, SPDT isolated relay output
