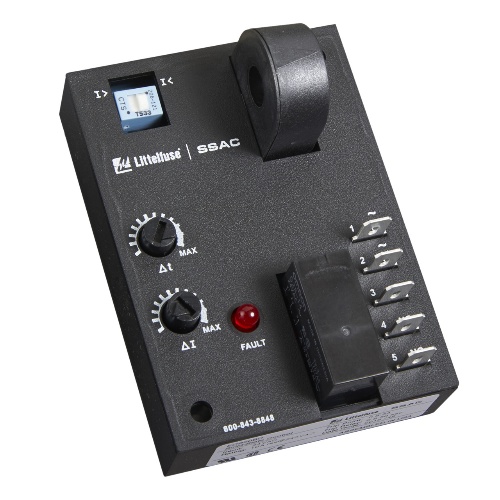

Littelfuse ECS31AC Current Monitoring - 24 Volt (DC), Double Throw, Single Pole
Normally In Stock
Code: 565282
Littelfuse ECS31AC - ECS Series - 24 Volt (DC) - Surface mount with two #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$206.65
Sale Price
$172.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ECS31AC is a versatile product with a range of output load ratings: 10A resistive @ 240V, 1/4 hp @ 125V, and 1/2 hp @ 250V. It features a 0.25 in. male quick connect terminal, -15% to 20% input tolerance, and humidity resistance up to 95%. The trip delay range is adjustable from 0.150 to 7s, with a fast response time of ≤75ms. The current sensor range is maximum 50A for steady state and 300A for inrush current. It uses peak detection with a toroid-type sensor and has analog trip delay. The sensor mode can be set to over or undercurrent, and the trip point range is adjustable from 2 to 20. The product ensures reliable performance with ±15% trip delay tolerance, ±5% trip point tolerance, and ±5% trip point hysteresis.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Surface Mount
Coil Voltage Rating
24 Volt (DC)
Features
Built-in toroidal current sensing
Encapsulated
Adjustable mode, trip point and trip delay
10A, SPDT isolated relay output
