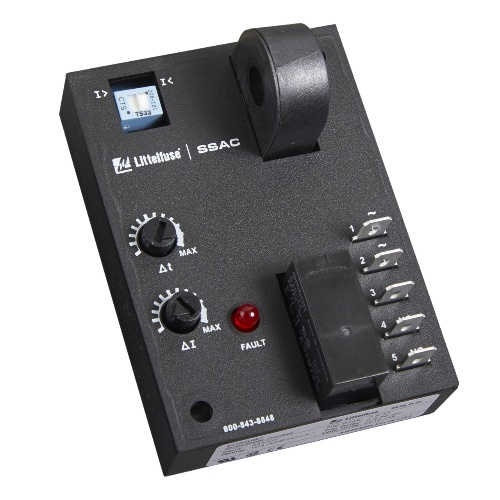

Littelfuse ECS30AC Current Monitoring - 24 Volt (DC), Double Throw, Single Pole
Normally In Stock
Code: 565281
Littelfuse ECS30AC - ECS Series - 24 Volt (DC) - Surface mount with two #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$206.65
Sale Price
$172.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse ECS30AC is a versatile product with a peak detection type of under or overcurrent sensing. It has an output load rating of 10A resistive at 240V, 1/4 hp at 125V, and 1/2 hp at 250V. The termination type is 0.25 in. male quick connect terminals. It offers a trip delay range of 0.150-7s, response time of ≤75ms, and a trip point range of 0.5-5 adjustable. This compact and reliable device operates in a humidity of 95% non-condensing and has a trip delay sensing on startup of 0-6s.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Surface Mount
Coil Voltage Rating
24 Volt (DC)
Features
Built-in toroidal current sensing
Encapsulated
Adjustable mode, trip point and trip delay
10A, SPDT isolated relay output
