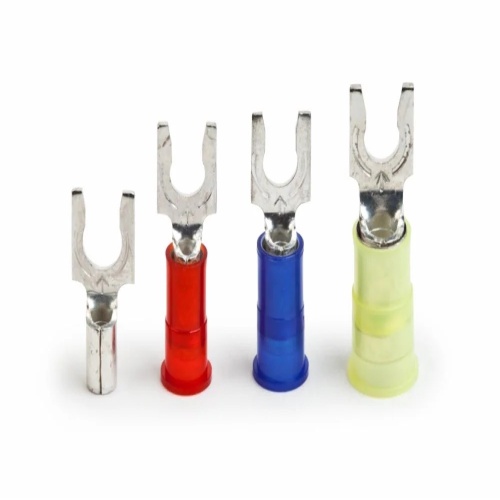

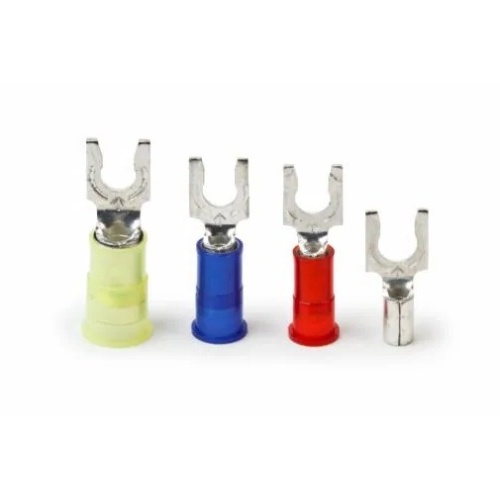

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7100164291 - Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH18-8FLK, Stud,Size 8
Normally In Stock
Code: 473957
Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH18-8FLK, Stud,Size 8 - 7100164291
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$153.88
Sale Price
$128.23
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ MH18-8FLK Fork Terminals are a high-quality electrical connection solution. With an overall length of 1 inch, they can accommodate a wide range of conductor sizes, from 18 AWG to 22 AWG. The heat shrink insulation material provides excellent protection. These locking fork terminals have a brazed barrel style and are designed for use with a #8 stud. The compact dimensions and reliable performance make them an ideal choice for various applications. - 7100164291
Specifications
Manufacturer
3M
Overall Length (Imperial)
1 In
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Component
Fork Terminals
Maximum Conductor Size (Metric)
.0823 mm²
Terminal Type
Fork
Minimum Conductor Size (Metric)
0.326 mm²
Terminal Style
Locking
Insulation Material
Heat Shrink
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
