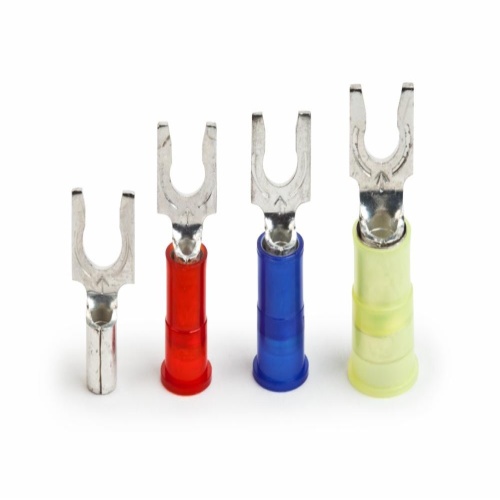

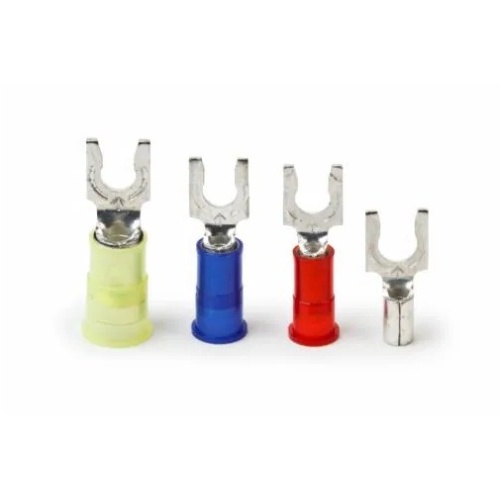

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 473950
3M 7100164287 - Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-8FLK, Stud,Size 8
Normally In Stock
Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-8FLK, Stud,Size 8 - 7100164287
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$556.78
Sale Price
$463.98
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ MH10-8FLK Fork Terminals are designed for locking fork applications. They have an overall length of 1 inch and an overall width of 0.32 inch. The maximum conductor size is 10 AWG (5.26 mm²) while the minimum conductor size is 12 AWG (3.31 mm²). The terminals feature Heat Shrink insulation and a brazed barrel style. The barrel length is 0.25 inch with a 0.135 inch inside diameter. They are suitable for #8 stud size. - 7100164287
Specifications
Manufacturer
3M
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Component
Fork Terminals
Terminal Type
Fork
Terminal Style
Locking
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Insulation Material
Heat Shrink
Overall Length (Imperial)
1"
Sub Brand
Scotchlok
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
