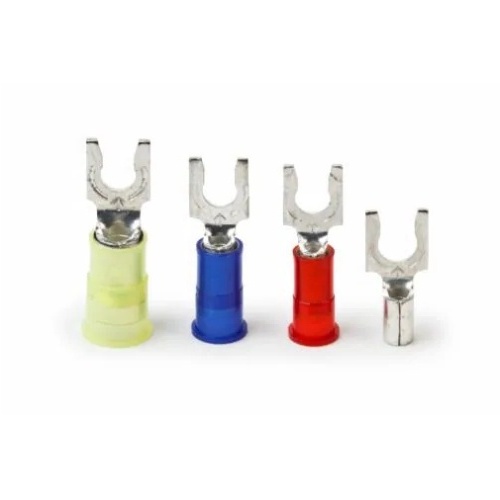

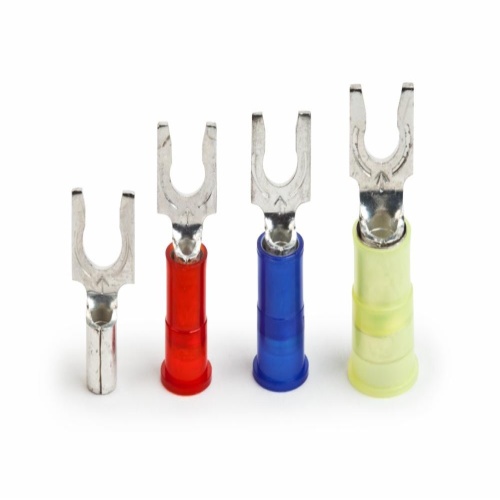

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7100164290 - Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH14-8FLK, Stud,Size 8
Normally In Stock
Code: 473954
Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH14-8FLK, Stud,Size 8 - 7100164290
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$153.88
Sale Price
$128.23
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Fork Terminals (MH14-8FLK) are designed for secure and efficient electrical connections. With an overall length of 1 inch, these terminals can accommodate a maximum conductor size of 14 AWG (2.08 mm²) and a minimum conductor size of 16 AWG (1.31 mm²). The heat shrink insulation material provides protection and durability. These terminals feature a locking fork design for added safety. The barrel style is brazed and has an inside diameter of 0.09 inch. The barrel length is 0.25 inch and the stud size is #8. The terminals are 0.3 inch wide and have a clearance of 0.12 inch. The stud diameter is 0.164 inch (4.166 mm). The terminals are CSA certified with a file number of LR22190. The dimensions of E and C are 0.7 inch and 0.12 inch respectively. - 7100164290
Specifications
Manufacturer
3M
Overall Length (Imperial)
1 In
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Component
Fork Terminals
Terminal Type
Fork
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Style
Locking
Insulation Material
Heat Shrink
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
