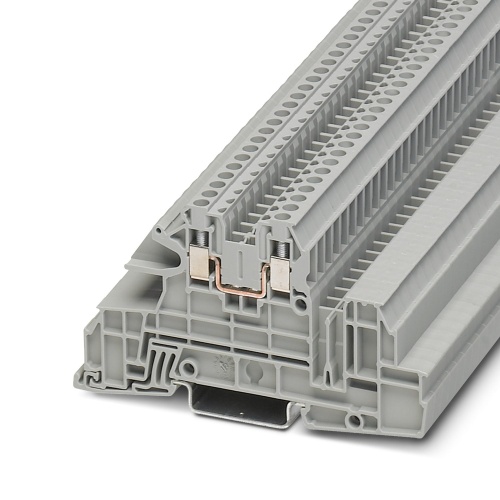

Phoenix Contact 3076034 Installation level terminal block UTI 2,5-L
Normally In Stock
Code: 41006
UTI 2,5-L Phoenix Contact 3076034 Installation Terminal Block - UTI 2,5-L Screw Connection 3 Level 5.2 mm with 2 Connections. Not Grounded, Not Fused Gray. 400 Volt, 24 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.90
Sale Price
$2.42
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3076034 The terminal block is installed at a level that makes it accessible for easy connection and disconnection, with voltage ratings of 400V and current capacities up to 24A. The connections are made using screws, with three levels of connection available, and the cross-sectional area of the wires ranges from 0.2mm² to 4mm². Two types of mounting brackets are used, NS35/7.5 and NS35/15, and the terminal block is finished in a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
2
Terminal Block Number of Levels
3
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Sub Component
Installation Level Terminal Block
Features
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors
Downloads
Phoenix 3076034 Application Note International.pdfPhoenix 3076034 CAD data International.dxfPhoenix 3076034 CAD data International.pdfPhoenix 3076034 CAD data International.stpPhoenix 3076034 Manufacturers declaration English.pdfPhoenix 3076034 Manufacturers declaration International.pdfPhoenix 3076034 Safety note English.pdfPhoenix 3076034 Tender Text English.zip
