Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 358301

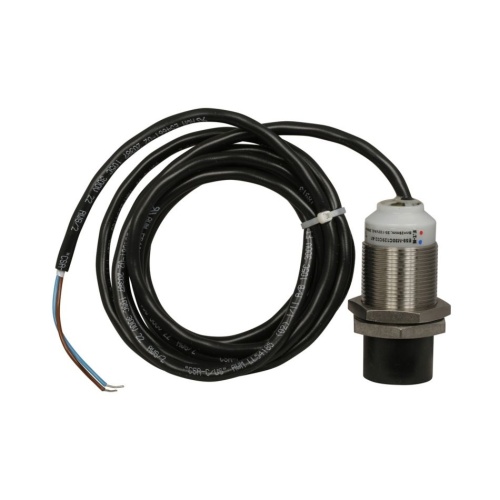

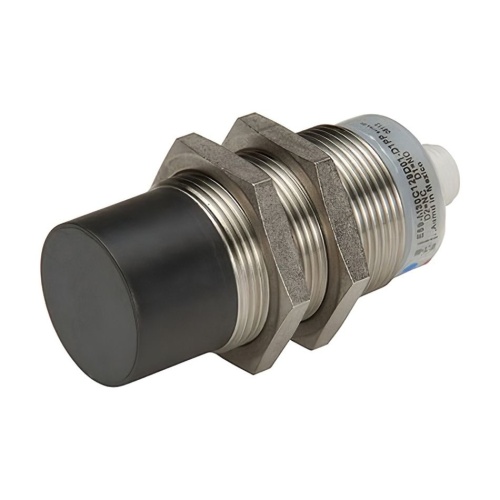

Eaton E59-M30C129C02-A2 Inductive Proximity Sensor
Normally In Stock
Eaton E59-M30C129C02-A2 - E59 Series, 0 - 29 mm Sensing Range - 1 NC - 300 mA at 132 VAC - End bell: PC,Tube: stainless steel,Front cap: PPS - Green power up turns red when output energized
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$399.60
Sale Price
$333.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton E59-M30C129C02-A2 - 1.18 dia, Sensor dist 29 mmdist, 2-Wire AC, NC, 300 mA at 132 Vac, 6.6 Ft. (2m) Cable, 20-132 Vac input, <3% of sensing dist. accuracy, 6.6 Ft. (2m)
Specifications
Component
Inductive Proximity Sensor
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP67
(Instrument-Sensor) Size
M30
(Instrument-Sensor) Contact Configuration
1 NC
(Instrument-Sensor) IP Protection
IP69K
(Instrument-Sensor) NEMA Protection
NEMA 4
(Instrument-Sensor) NEMA Protection
NEMA 13
(Instrument-Sensor) NEMA Protection
NEMA 6P
(Instrument-Sensor) NEMA Protection
NEMA 6
(Instrument-Sensor) NEMA Protection
NEMA 12
Manufacturer
Eaton
(Instrument-Sensor) Type
Tubular
(Instrument-Sensor) Connection Type
2 Wire
(Instrument-Sensor) Contact Rating
300 Ma At 132 VAC
(Instrument-Sensor) Supply Voltage
20-132 VAC
(Instrument-Sensor) Cable Length
6.6'
(Instrument-Sensor) Temperature Range
-40 - 158°F
(Instrument-Sensor) Span
0-29 mm
Features
Available in AC two-wire, DC three-wire and unique DC four-wire with complementary (NO-NC) or dual NO outputs
Reliably detect metal targets at up to three times the range of conventional shielded or unshielded tubular inductive sensors
Quality construction using a stainless steel barrel, 360-degree dual-color LED indicator, Ryton® impact-resistant face cap and vibration-absorbing potting compound
Auto-configure technology automatically detects a sinking (NPN) or sourcing (PNP) connection and switches the sensor accordingly, without any user intervention
Exclusive SmartSense embedded microprocessor technology allows for customizable range, band sensing, nuisance metal rejection, timing delays and over/under speed detection
Optional computer programming cable and Windows-based ProxView configuration software makes it easy to customize sensors
Withstands high electrical noise (up to 20 V/m)
Resistant to extreme temperatures (–40 °F [–40 °C])
