Phoenix Contact 1409724 Valve connector SAC-3P-MR/BI-1L-Z SCO 180
Normally In Stock
Code: 271313
Phoenix Contact 1409724 Valve connectors - SAC-3P-MR/BI-1L-Z SCO 180, plug angled M12, 3-position
Condition: New
Usually ships Same Day or Next Day$35.44
Sale Price
$29.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

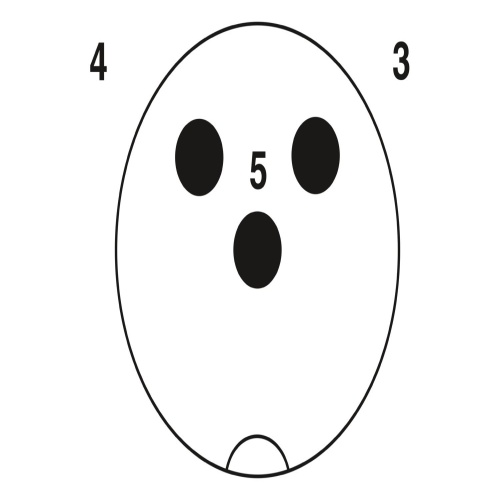

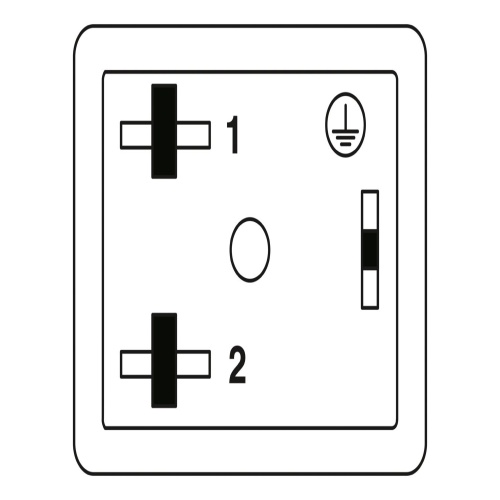

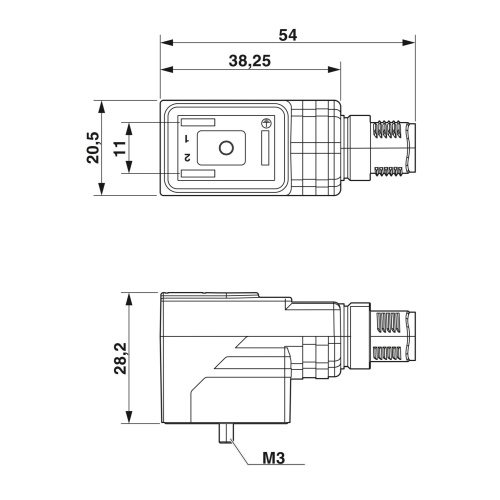

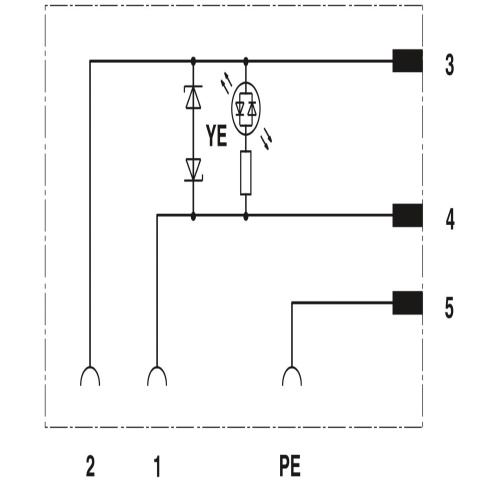

Phoenix Contact 1409724 The valve connector has a 3-position design with an M12 threaded plug and a coded A designation, featuring a 11mm diameter socket for the BI valve, accompanied by one LED light source and utilizes a Z diode wiring configuration, with the pin connector on the valve plug rotated 180 degrees.
Specifications
Cable Coding
A - Standard
Cable Head 1 Design
Plug Angled M12
Cable Number of Positions
3-Position
Manufacturer
Phoenix Contact
Cable Head 2 Design
Valve Connector
Component
Valve Connector Adaptor
Features
Safe signal transmission due to fixed installation with screw locking mechanism
Reliable even when subjected to mechanical strain, such as shock and vibrations
Reliable protection against dust and splash water with IP65 degree of protection
Resistant to oils and grease
