Code: 271301
Phoenix Contact 1458101 Double valve connector adapter SAC-MS/0,1-116/2XA-1L-Z SCO
Normally In Stock

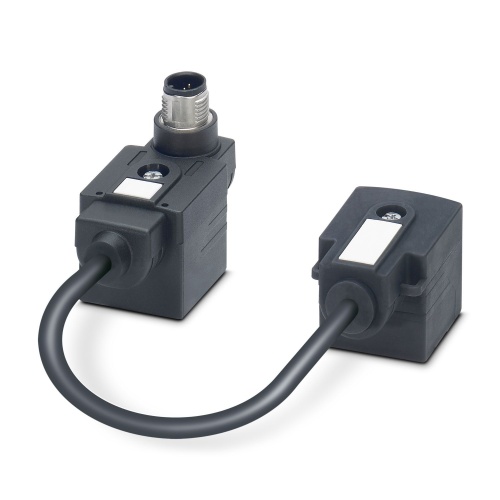

Phoenix Contact 1458101 Double valve connector Adapter - SAC-MS/0,1-116/2XA-1L-Z SCO, plug straight M12, 4-position
Condition: New
Usually ships Same Day or Next Day$49.86
Sale Price
$41.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

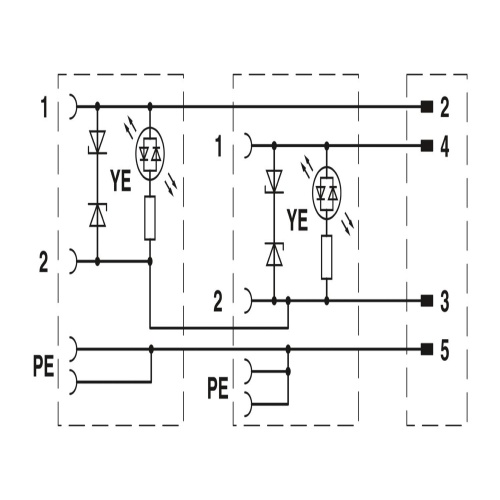

Phoenix Contact 1458101 A double valve connector adapter is available in a universal design with four positions, made from PUR/PVC materials in black RAL 9005 color, featuring a straight M12 SPEEDCON plug and coded as A on Valve connector A, equipped with one LED light source, connected via Z diode wiring to Valve connector A with one LED light source, and further wired using a Z diode, with the valve connectors spaced at a distance of 0.1 meters apart.
Specifications
Cable Number of Positions
4-Position
Cable Coding
A - Standard
Cable Head 1 Design
Plug Straight M12
Manufacturer
Phoenix Contact
Cable Head 2 Design
Valve Connector
Cable Material
PUR/PVC
Component
Valve Connector Adapter
Features
Easy and safe: 100 % electrically tested plug-in components
Efficient: control valves with two connections via a single connecting cable
Convenient: increased machine availability thanks to quick and easy diagnostics
