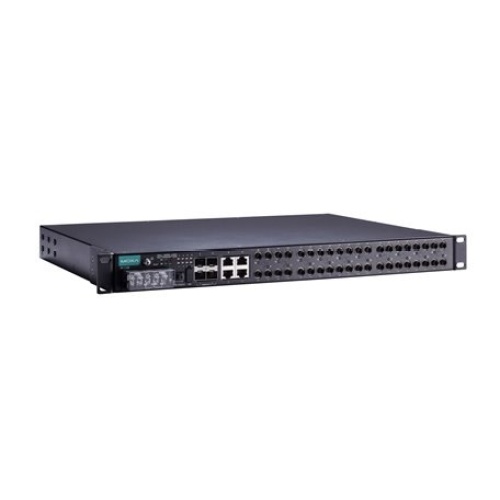

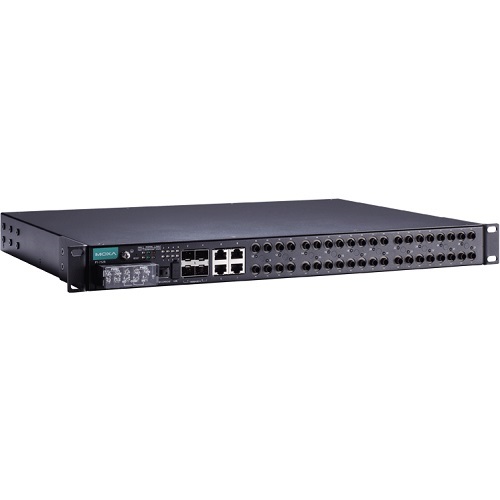

Moxa PT-7528-20MSC-4TX-4GSFP-HV Managed Switch

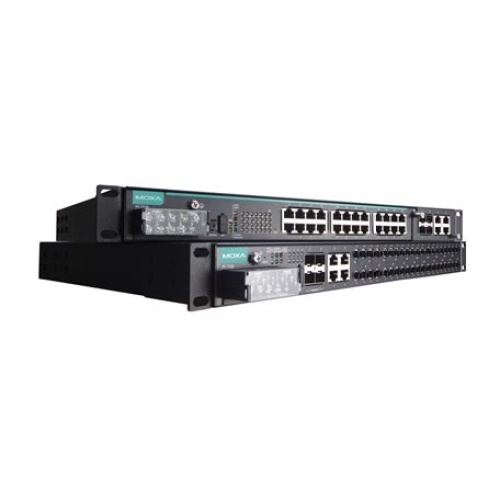

Moxa PT-7528-20MSC-4TX-4GSFP-HV Managed Ethernet Switch (Rack Mount) IEC 61850-3 Power Substation certification with a total of 24 ports including 24 ports including 4 Fast Copper ports RJ45 (100 Mbps) and 20 Fast Fiber ports SC Multi-Mode (100 Mbps) with 4 Uplink Ports Gigabit Copper RJ45 (1000 Mbps). Operating Temperature: -40 to 185°F. Isolated 110-220 VDC Power Supply. The PowerTrans PT-7528 series is designed for power substation automation applications that operate in extremely harsh environments. The PT-7528 series supports Moxa’s new Noise Guard technology, is compliant with IEC 61850-3, and its EMC immunity exceeds IEEE 1613 Class 2 standards to ensure zero packet loss while transmitting at wire speed. The PT-7528 series also features critical packet prioritization (GOOSE, SMVs, and PTP), a built-in MMS server, and a configuration wizard designed specifically for substation automation. With Gigabit Ethernet, redundant ring, and 110/220 VDC/VAC isolated redundant power supplies, the PT-7528 series further increases the reliability of your communications and saves cabling/wiring costs. The wide range of PT-7528 models available support Multiple types of port configuration, with up to 28 copper or fiber ports and 4 gigabit ports for uplink. Taken together, these features allow greater flexibility, making the PT-7528 suitable for a variety of industrial applications.

Specifications
Min. # Fast Copper Ports	At least 1 Fast Copper RJ45 Port
Certification	IEC 61850-3 Certified
Min. # Fast Copper Ports	At least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 4 Fast Copper RJ45 Port
Switch Mounting	Din Rail
Switch Power Connection	Wire Terminals
Switch Ruggedized	Extended Temperature
Switch Management	Managed
Switch Temperature Range	-40F to 185F
Switch Voltage Input	110 VDC
Switch Voltage Input	230 VDC
Switch Ruggedized	Isolated Power Supply
Switch Fiber Ports Multi Mode Fast (100 Mbps)	20 SC Multi Mode
Min. # Fast Fiber SC Ports	At least 1 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 2 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 3 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 4 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 5 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 6 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 7 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 8 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 9 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 10 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 11 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 12 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 13 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 14 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 15 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports	At least 16 Fast Fiber SC Port Multi
Min. # Gigabit Fiber SC Ports	At least 17 Fast Fiber SC Port Multi
Min. # Gigabit Fiber SC Ports	At least 18 Fast Fiber SC Port Multi
Min. # Gigabit Fiber SC Ports	At least 19 Fast Fiber SC Port Multi
Min. # Gigabit Fiber SC Ports	At least 20 Fast Fiber SC Port Multi
Switch POE Ports	No POE Ports
Switch Copper Ports Fast (100 Mbps)	4 RJ45 Ports
Switch Total Ports	24
Switch Model	Moxa EDS PT
Switch All Ports	4 Fast Copper RJ45-20 Fast Fiber SC Multi
Manufacturer	Moxa
