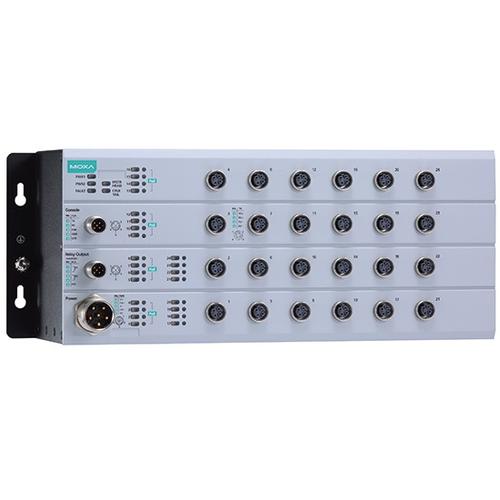

Moxa TN-4524A-16PoE-WV-T Managed Ethernet Switch

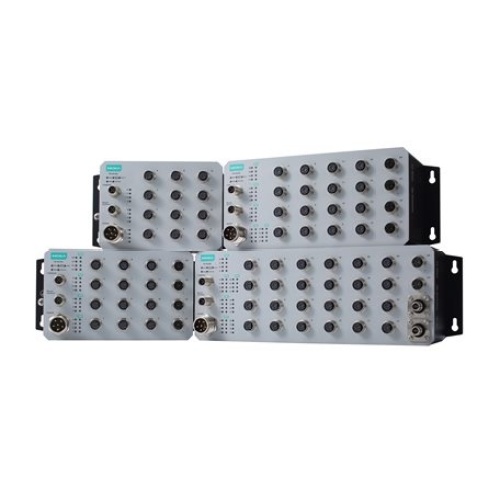

Moxa TN-4524A-16PoE-WV-T Managed Ethernet Switch with 24 ports including 16 Fast Copper PoE ports M12 (100 Mbps) and 8 Fast Copper ports M12 (100 Mbps), Extended Temp -40 to 75 C operating temperature, dual redundant power inputs 16.8 to 137.5 VDC (24-110 VDC). EN50155 certified ideal for railway applications. The ToughNet TN-4524A-16PoE Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4524A-16PoE Series Ethernet switches provide 24 fast Ethernet M12 ports with or without IEEE 802.3at/af compliant PoE (Power-overEthernet) function. The PoE switches are classified as power source equipment (PSE); they provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.

Specifications
Min. # Fast Copper Ports	At least 1 Fast Copper M12 Port
Certification	EN50155 Certified
Min. # Fast Copper Ports	At least 9 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 10 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 11 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 12 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 13 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 14 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 15 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 16 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 17 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 18 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 19 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 20 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 21 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 22 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 23 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 2 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 3 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 4 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 5 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 6 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 7 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 8 Fast Copper M12 Port
Switch Mounting	Din Rail
Switch Voltage Input	24 VDC
Switch Voltage Input	48 VDC
Switch Temperature Range	-40F to 167F
Switch Ruggedized	Extended Temperature
Switch Management	Managed
Switch Power Connection	M23 Connectors
Switch Ruggedized	Vibration Resistant
Switch Voltage Input	72 VDC
Switch Voltage Input	96 VDC
Switch Voltage Input	110 VDC
Min. # Gigabit Copper Ports	At least 24 Fast Copper RJ45 Port
Switch Power Redundancy	Redundant Power Inputs
Switch Total Ports	24
Switch Model	Moxa EDS TN
Switch Copper Ports Fast (100 Mbps)	24 M12 Ports
Switch All Ports	24 Fast Copper M12
Switch POE Ports	16 POE Fast Ports
Switch All Ports	16 Fast POE Copper M12-8 Fast Copper M12
Manufacturer	Moxa
