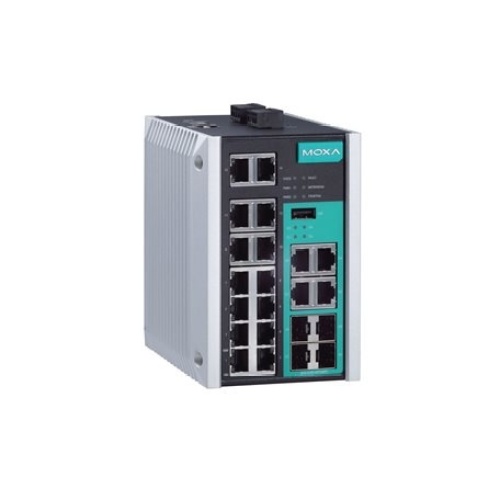

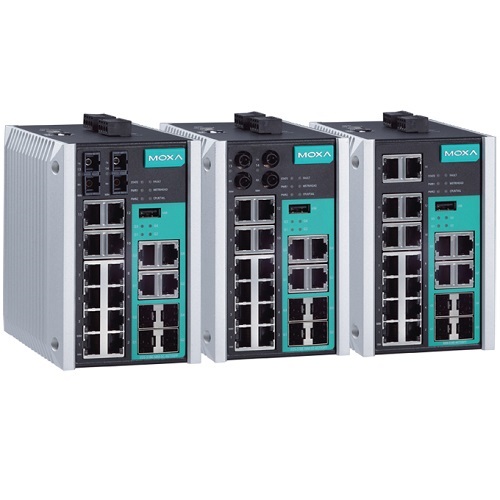

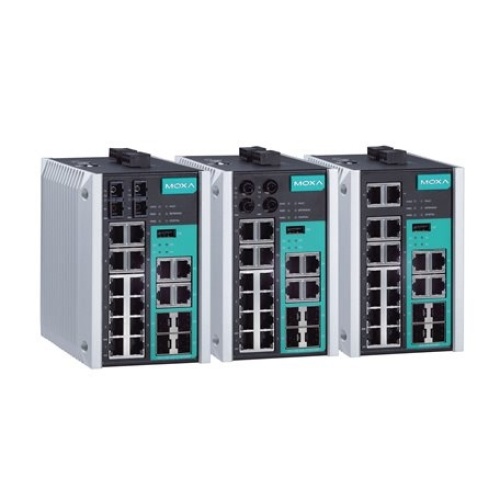

Moxa EDS-518E-SS-SC-4GTXSFP Managed Switch
Normally In Stock
Code: 26260
Moxa EDS-518E-SS-SC-4GTXSFP Modular managed Ethernet Switch (Din Rail Mount) with 18 ports including 12 Fast Copper ports (100 Mbps), and 2 Fast Fiber Single-mode with SC ports (100 Mbps), and 4 combo ports of Gigabit Fiber Plug-In SFP slots (1000 Mbps) or 4 Gigabit Copper RJ45 ports. 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$3781.31
Sale Price
$3151.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-518E-SS-SC-4GTXSFP Modular managed Ethernet Switch (Din Rail Mount) with 12 Fast Copper ports (100 Mbps), and 2 Fast Fiber Single-mode with SC ports (100 Mbps), and 4 combo ports of Gigabit Fiber Plug-In SFP slots (1000 Mbps) or 4 Gigabit Copper RJ45 ports. 0 to 60 C operating temperature. The EDS-518E series is a standalone, compact-size 18-port managed Ethernet switch that provides 4 combo Gigabit ports with built-in RJ45 or SFP slots for Gigabit fiber optic communication. Ethernet redundant Turbo Ring, Turbo Chain , RSTP/STP, and MSTP increase the system reliability and availability of your network backbone. The EDS-518E also supports advanced management and security features.
Specifications
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Switch Voltage Input
12 VDC
Switch Management
Managed
Switch Fiber Ports Plug-In Gigabit (1000 Mbps)
4 Plug-In Gigabit Fiber
Switch Temperature Range
32F To 140F
Switch Copper Ports Gigabit (1000) Mbps
12 RJ45 Ports
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
18
Switch All Ports
14 Fast Copper RJ45-2 Fast Fiber SC Single-4 Gigabit Plug-In Fiber
Switch All Ports
4 Gigabit Copper-14 Fast Copper RJ45-2 Fast Fiber SC Single
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
4 Gigabit plus 14 fast Ethernet ports for copper and fiber
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security
Security features based on IEC 62443
EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
Fiber Check™—comprehensive fiber status monitoring and warning on MST/MSC/SSC/SFP fiber ports
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery
