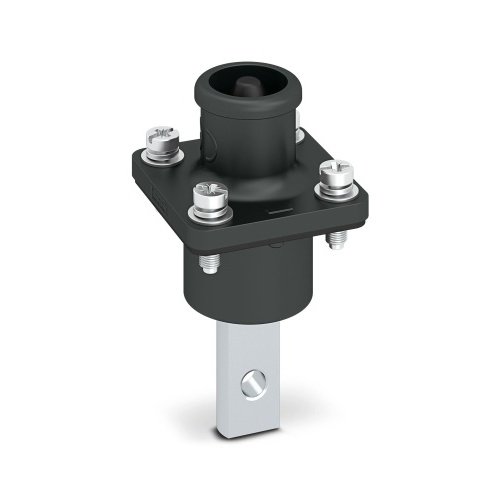

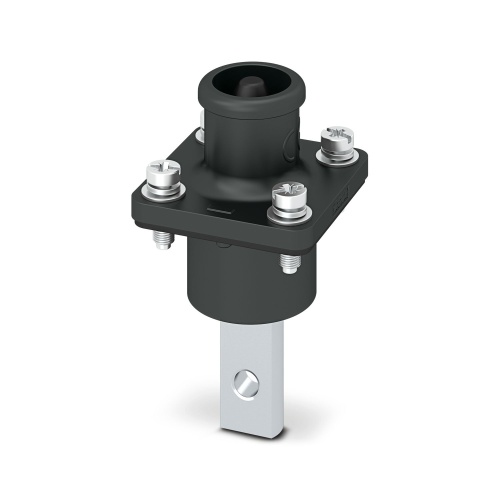

Phoenix Contact 1228828 Connector ES-FT-BPC-B/S 35-70 BK
Normally In Stock
Code: 236502
Phoenix Contact 1228828 - Connector - 1 Position - Cu, Cu Alloy - 250 Amp - IP65 - Solder Connection
Condition: New
Usually ships Same Day or Next Day $15.47
Sale Price
$12.89
MUST BUY IN PACKS OF 15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1228828 The connector has a black color, one position, and a minimum conductor cross-section of 35mm² to a maximum of 70mm². It is designed for connections with a rated voltage of 1500V and a maximum current capacity of 250A. The connection method is either by screw or soldering, with the contact type featuring a pin configuration.
Specifications
Connector Amperage
250 Amp
Connector Material
Cu Alloy
Connector Material
Polyamide
Connector Material
Cu
Connector protection
IP65
Manufacturer
Phoenix Contact
Number of Positions
1
Component
Energy Storage Connector
Features
Patented design, with 3 proofs and one rotation
Safety lock
360° free rotation and flexible wiring
Foolproof mechanism installed
Touch-proof
Mismatching and short circuit proof
