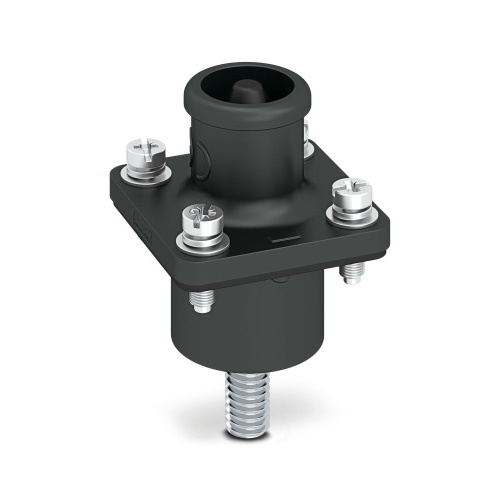

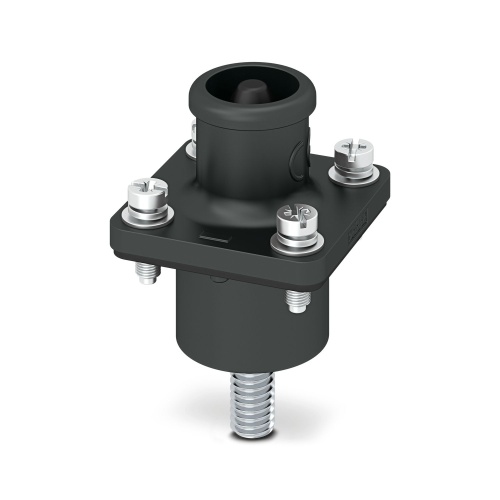

Phoenix Contact 1228819 Connector ES-FT-BPC-S 35-70 BK
Normally In Stock
Code: 236496
Phoenix Contact 1228819 - Connector - Cu, Cu Alloy - 250 Amp - IP65 - Solder Connection
Condition: New
Usually ships Same Day or Next Day $17.46
Sale Price
$14.55
MUST BUY IN PACKS OF 15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1228819 The connector has a black color and is designed for BPC articles, with one position available and minimum conductor cross-section of 35mm2, up to a maximum of 70mm2. It's rated for 1500volts and can handle currents of up to 250amps, utilizing screw/solder connections and pin-based contact arrangements.
Specifications
Connector Amperage
250 Amp
Connector Material
Cu Alloy
Connector Material
Polyamide
Connector Material
Cu
Connector protection
IP65
Manufacturer
Phoenix Contact
Component
Energy Storage Connector
Features
Patented design, with 3 proofs and one rotation
Safety lock
360° free rotation and flexible wiring
Foolproof mechanism installed
Touch-proof
Mismatching and short circuit proof
