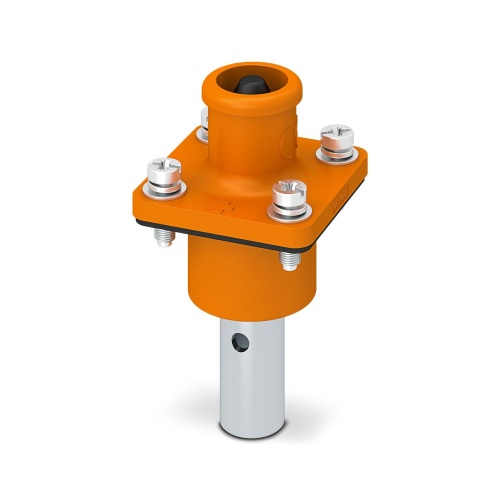

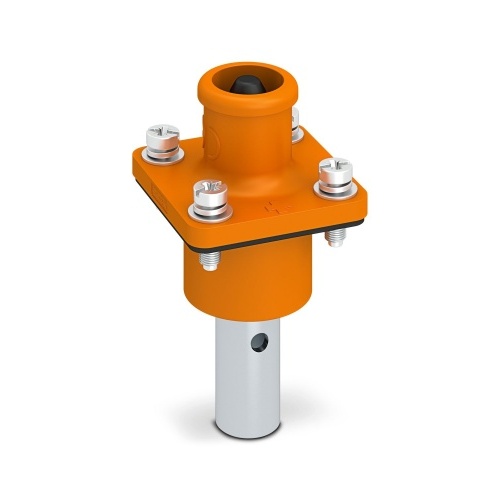

Phoenix Contact 1228827 Connector ES-FT-BPC-C 50-70 OG
Normally In Stock
Code: 236501
Phoenix Contact 1228827 - Connector - Cu, Cu Alloy - 250 Amp - IP65 - Crimp Connection
Condition: New
Usually ships Same Day or Next Day $13.57
Sale Price
$11.31
MUST BUY IN PACKS OF 15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1228827 A connector with an orange color features a single position and has minimum and maximum conductor cross-sections of 50mm² and 70mm² respectively, with a rated voltage of 1500V and a maximum current capacity of 250A. The connection method is crimp-based, utilizing a pin-type contact connection.
Specifications
Connector Amperage
250 Amp
Connector Material
Cu Alloy
Connector Material
Polyamide
Connector Material
Cu
Connector protection
IP65
Manufacturer
Phoenix Contact
Component
Energy Storage Connector
Features
Patented design, with 3 proofs and one rotation
Safety lock
360° free rotation and flexible wiring
Foolproof mechanism installed
Touch-proof
Mismatching and short circuit proof
