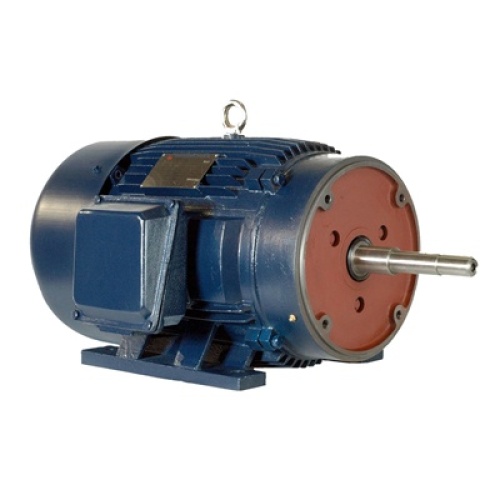

NAE PE215JP-10-4 Electric Motor Close Coupled Pump, 208-230 Volt, 460 Volt, 3 Phase, 10 HP, 26 - 24 Amp, 12 Amp
Normally In Stock
Code: 217156
NAE PE215JP-10-4 Electric Motor 10 HP, 1800 RPM, 215JP Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Closed Coupled Pump Motor, Cast Iron, Prem Eff, Inverter Duty
Condition: New
Usually ships Same Day or Next Day$1220.18
Sale Price
$1016.82
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PE215JP-10-4 Close Coupled Pump Electric Motor used for Industrial and commercial pumping units; Suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provisions. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint; IP55 protection; Condensation drains with plugs. Sealed bearings; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
10 HP
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Amperage (Full Load)
12 Amp
Motor Frame Construction
Heavy Duty Cast Iron
Motor Amperage (Full Load)
26 - 24 Amp
Motor Frame Model
215JP
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
NEMA Design B Performance/ High starting torgue
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint
IP55 protection
Condensation drains with plugs
Sealed bearings
3-year warranty (extended warranty available)
