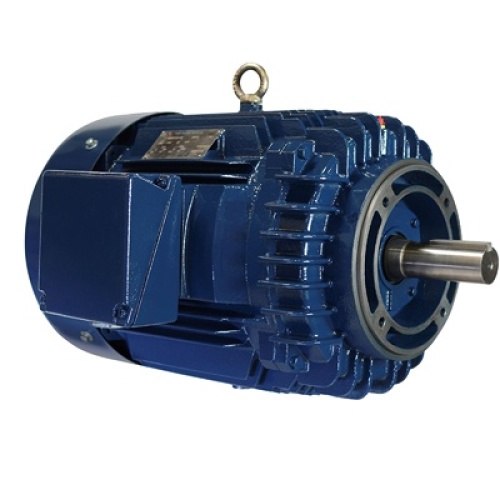

NAE PE213TC-7.5-4-RB-AI Electric Motor General Purpose Heavy Duty Cast Iron, 208-230 Volt, 460 Volt, 3 Phase, 7.5 HP, 22 Amp, 11 Amp
Normally In Stock
Code: 216859
NAE PE213TC-7.5-4-RB-AI Electric Motor 7.5 HP, 1800 RPM, 213TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Round Body
Condition: New
Usually ships Same Day or Next Day$1066.25
Sale Price
$888.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PE213TC-7.5-4-RB-AI General Purpose Heavy Duty Cast Iron Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial machinery; Damp, dusty or dirty environments; Suitable for use with variable frequency drives> 1-30 HP in stock; Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; NEMA Design B Performance/ High starting torque; F1/ F2 reversible; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frame Model
213TC
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Frame Construction
Heavy Duty Cast Iron
Motor Amperage (Full Load)
22 Amp
Motor Amperage (Full Load)
11 Amp
Features
1-30 HP in stock
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
NEMA Design B Performance/ High starting torque
F1/ F2 reversible
Lifting provision
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware
IP55 protection
Condensation drain with plugs
Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above
3-year warranty (extended warranty available)
