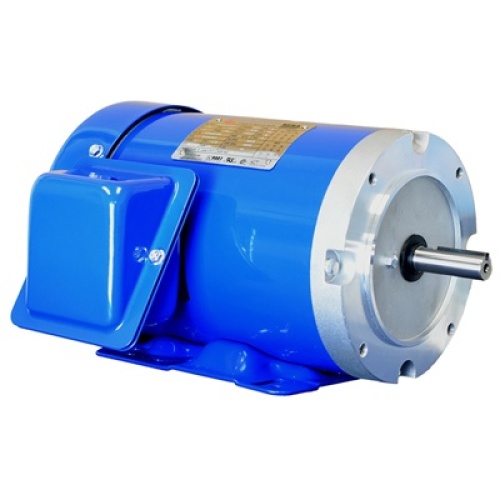

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
NAE F56C3/4M4A Electric Motor General Purpose Rolled Steel, 208-230 Volt, 460 Volt, 3 Phase, 0.75 HP, 2.43-2.34 Amp, 1.17 Amp
Normally In Stock
Code: 216739
NAE F56C3/4M4A Electric Motor 3/4 HP, 1800 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel, Std Eff, Inverter Rated
Condition: New
Usually ships Same Day or Next Day$232.15
Sale Price
$193.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE F56C3/4M4A General Purpose Rolled Steel Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial and commercial machinery; Damp, dusty or dirty environments; Suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; NEMA Design B Performance/ High starting torque; Removable feet; 56CH frames: Feet are dual-drilled for 56C and 143/ 5T mounting flexibility. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells; IP55 protection; Condensation drain with plugs. Sealed bearings; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
0.75 HP
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Voltage
208-230 Volt
Motor Frame Construction
Rolled Steel
Manufacturer
North American Electric Motors
Motor Frame Model
56C
Motor Amperage (Full Load)
1.17 Amp
Motor Amperage (Full Load)
2.43 - 2.34 Amp
Features
Service factor: 1.15 @ 60 Hz
NEMA Design B Performance/ High starting torque
Removable feet
56CH frames: Feet are dual-drilled for 56C and 143/ 5T mounting flexibility
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells
IP55 protection
Condensation drain with plugs
Sealed bearings
3-year warranty (extended warranty available)
