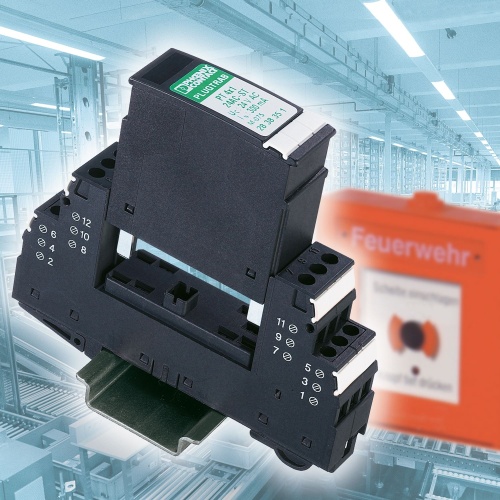

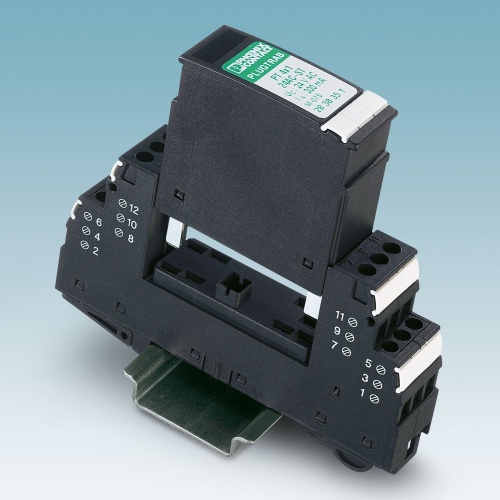

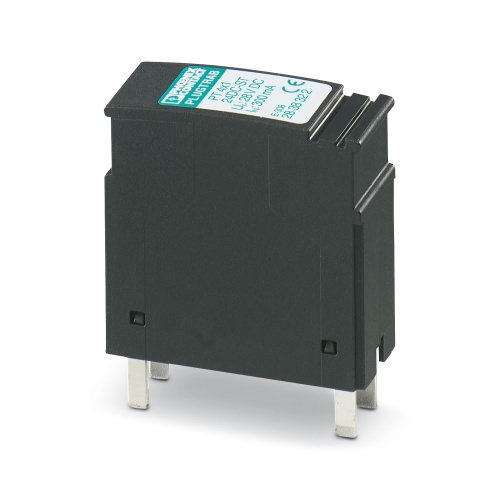

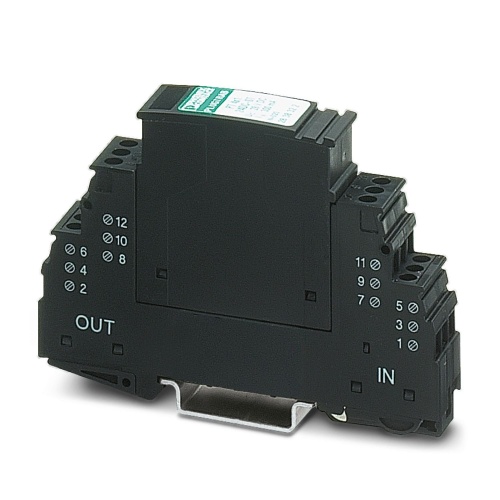

Phoenix Contact 2838322 Surge protection plug PT 4X1-24DC-ST
Normally In Stock
Code: 10545
PT 4X1-24DC-ST Phoenix Contact Transient Surge Suppressor PT 4X1-24DC-ST Protective plug PT with protective circuit for 4 conductors of signal circuits grounded on one side. Nominal voltage: 24 V DC
Condition: New
Usually ships Same Day or Next Day$448.60
Sale Price
$373.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

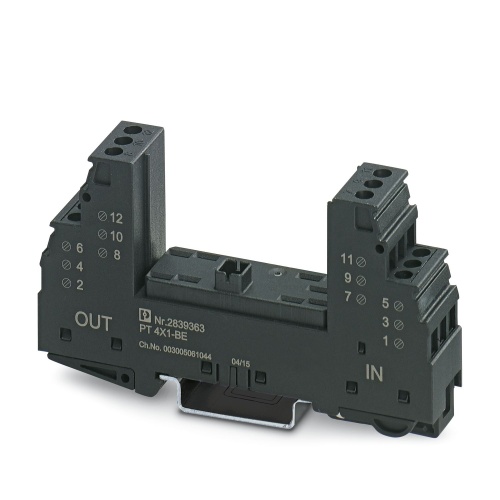

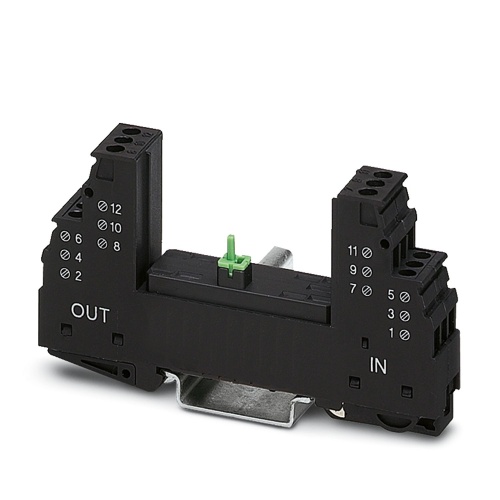

Related Products
Description

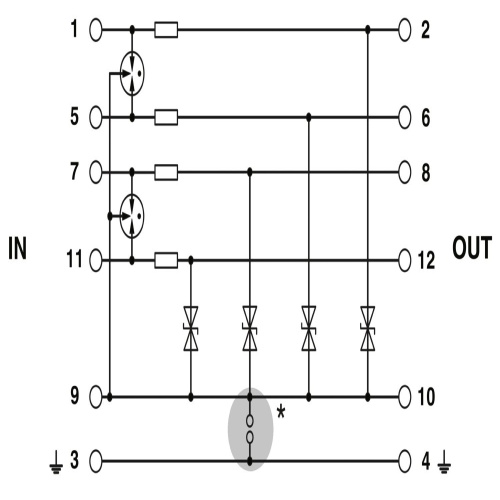

Phoenix Contact 2838322 A protective plug designed to safeguard signal circuits featuring four conductors that are all grounded on one side, this device has a nominal operating voltage of 24 volts direct current (DC).
Specifications
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
55.2 Volt
Nominal Discharge Current
5 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2838322 CAD data International.dxfPhoenix 2838322 CAD data International.pdfPhoenix 2838322 CAD data International.stpPhoenix 2838322 CAD Drawing.zipPhoenix 2838322 EPLAN Macro International.z13Phoenix 2838322 EPLAN Macro International.zipPhoenix 2838322 Flyer English.pdfPhoenix 2838322 Manufacturers declaration English.pdfPhoenix 2838322 Manufacturers declaration International.pdfPhoenix 2838322 Package Slip International.pdfPhoenix 2838322 Product Information English.pdfPhoenix 2838322 Software International.zipPhoenix 2838322 Spec Sheet.pdfPhoenix 2838322 Surge Protection English.pdfPhoenix 2838322 Tender Text English.zipPhoenix 2838322 User Manual.pdf
