Phoenix Contact 2839363 Surge protection base-element PT 4X1-BE
Normally In Stock
Code: 10566

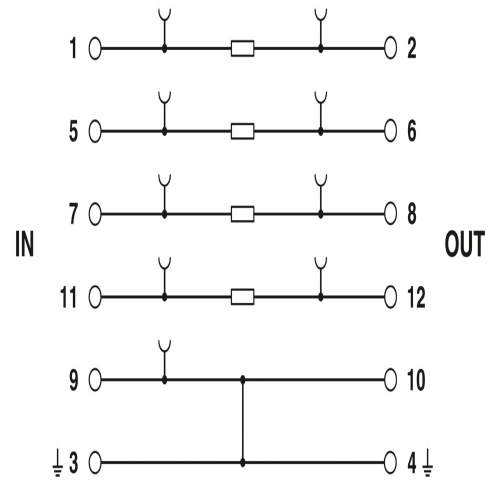

PT 4X1-BE Phoenix Contact PT 4X1-BE Base element for protective plug PT with protective circuit for 4 conductors of signal circuits grounded on one side, with bridge between the connections 3-4 (GND) and 9-10.
Condition: New
Usually ships within 7-14 days. Call for ship time.$143.17
Sale Price
$119.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

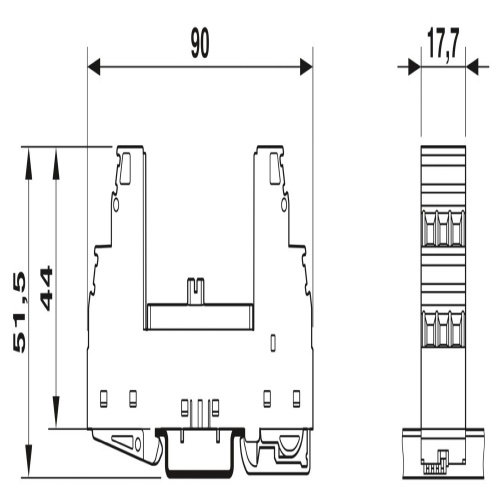

Phoenix Contact 2839363 The protective plug PT features a protective circuit designed for signal circuits that are grounded on one side, with a bridge connecting the GND connections at terminals 3-4 and 9-10 for mounting on profiles NS 35/7.5 and NS 35/15, characterized by a housing width of 17.5 mm.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
275 Volt
Nominal Discharge Current
20 Ka
Sub Component
Base Element
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
