Phoenix Contact 2839376 Surge protection base-element PT 4X1+F-BE
Normally In Stock
Code: 10551
PT 4X1+F-BE Phoenix Contact Transient Surge Suppressor PT 4X1+F-BE Base element for protective plug PT with protective circuit for 4 signal wires, with gas-filled surge arrester.
Condition: New
Usually ships within 7-14 days. Call for ship time.$143.17
Sale Price
$119.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

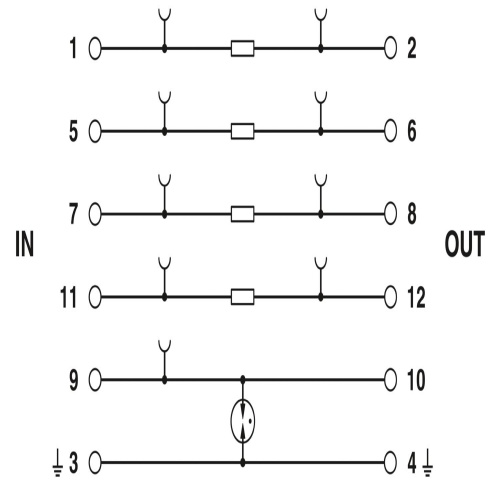

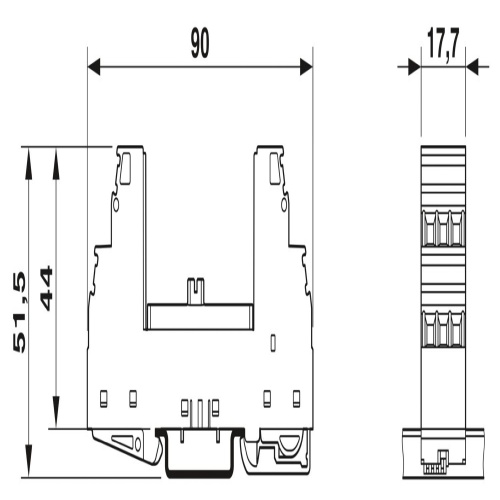

Phoenix Contact 2839376 A protective plug with a built-in protective circuit is designed to handle four signal wires, featuring a gas-filled surge arrester between connections 3-4 (GND) and 9-10, suitable for mounting on NS 35/7.5 and NS 35/15 enclosures, with a housing width of 17.5 mm.
Specifications
Manufacturer
Phoenix Contact
Component
Accessories
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
30 Volt
Sub Component
Base Element
Features
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2839376 Application example English.pdfPhoenix 2839376 CAD data International.dxfPhoenix 2839376 CAD data International.pdfPhoenix 2839376 CAD data International.stpPhoenix 2839376 CAD Drawing.zipPhoenix 2839376 Flyer English.pdfPhoenix 2839376 Manufacturers declaration English.pdfPhoenix 2839376 Manufacturers declaration International.pdfPhoenix 2839376 Package Slip International.pdfPhoenix 2839376 Product Information English.pdfPhoenix 2839376 Software International.zipPhoenix 2839376 Spec Sheet.pdfPhoenix 2839376 Surge Protection English.pdfPhoenix 2839376 Tender Text English.zipPhoenix 2839376 User Manual.pdf
