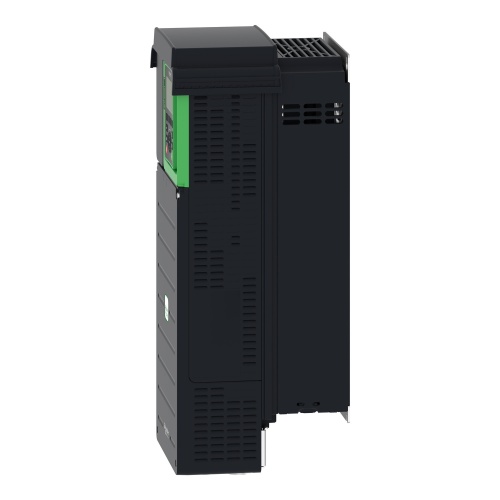

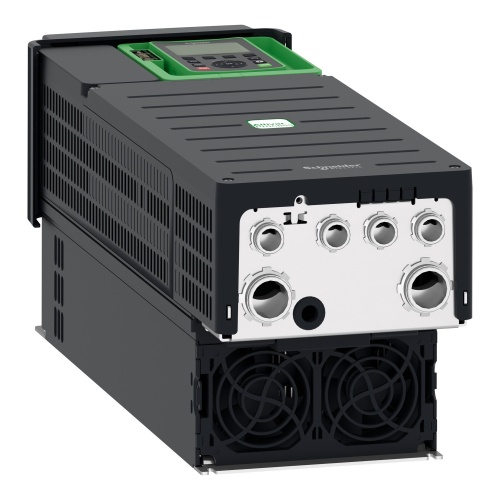

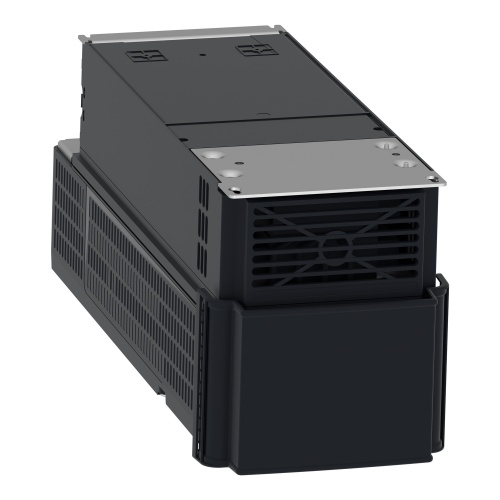

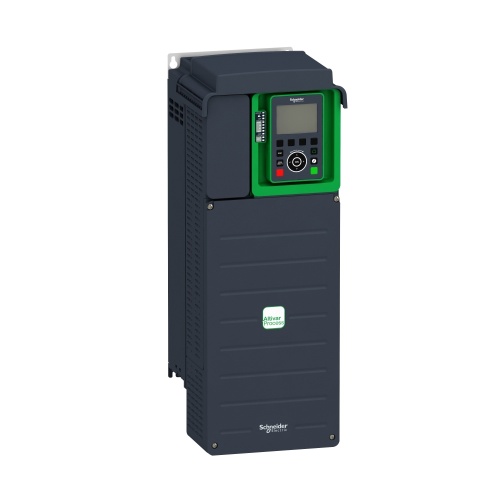

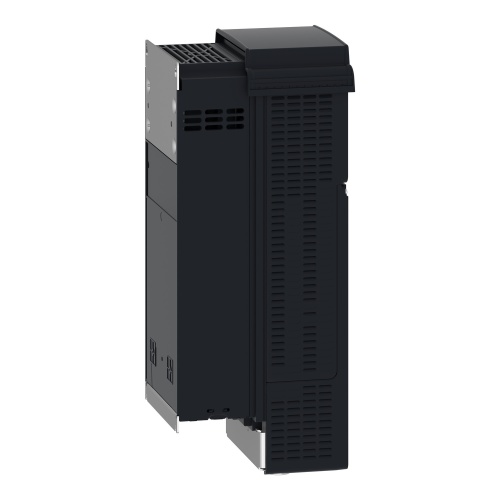

Schneider Electric ATV930D18N4 variable speed drive, ATV930, 18,5kW, 400/480V, with braking unit, IP21
Normally In Stock
Code: 97306
Schneider ATV930D18N4 IP21 IEC 61800-5-1, IP21 IEC 60529 18.5 kW normal duty, 15 kW heavy duty 39.2 A 4 kHz normal duty, 31.7 A 4 kHz heavy duty With braking chopper, Standard version Variable speed drive Modbus TCP, Ethernet/IP, Modbus serial 25 HP normal duty, 20 HP heavy duty *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Normally Stocked$5479.25
Sale Price
$4566.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
variable speed drive, ATV930, 18,5kW, 400/480V, with braking unit, IP21
Specifications
VFD Torque
Constant Torque
VFD Application
Compressor
VFD Application
Conveyor
VFD Application
Positive Displacement Pump
VFD Application
Mixer
VFD Application
Hoist
VFD Application
Traction Drive
VFD Horsepower Output
25 HP
Drive Type
Standard Version
Drive Type
Variable Speed Drive
Option Card Slots
Modbus Serial
Option Card Slots
Modbus TCP
VFD EMC Filter
Integrated 492.13 Ft (150 M EN/IEC 61800-3 Category C3
VFD EMC Filter
Integrated 164.04 Ft (50 M EN/IEC 61800-3 Category C2
Option Card Slots
Ethernet/IP
VFD Frame Type
22277 - ATV930 FRAMES 3 & 4
VFD Frame Type
Altivar Process ATV900
Option Card Slots
2 RJ45 Ethernet IP/Modbus TCP On The Control Block
Option Card Slots
1 RJ45 Modbus Serial On The Control Block
Drive Type
With Braking Chopper
VFD Amperage Output
39.2 Amp
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
IP21
VFD Line
Altivar ATV930
Features
Embedded power measurement and energy dashboard
Embedded process monitoring and control
Stop and Go function to reduce energy consumption
