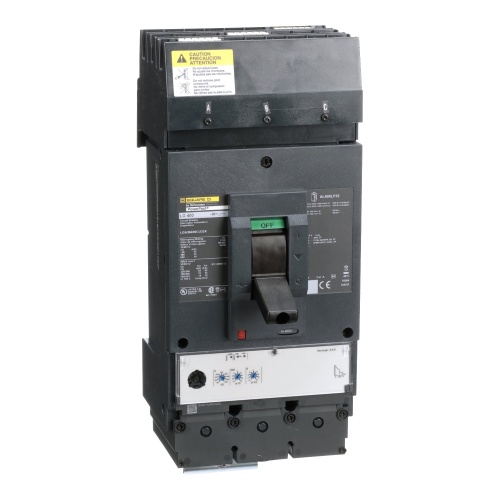

Schneider Electric LGA36400CU33X Circuit breaker, PowerPact L, I-Line, Micrologic 3.3S, 400A, 3 poles, 600 V, 18 kA, 100% rated
Schneider LGA36400CU33X Circuit breaker 400 A 3P 100 % I-Line CSA 22-2, CCC, IEC, CE, UL 489, NMX, NEMA PowerPact L 14.7 in (373.38 mm 5.94 in (150.88 mm 6.61 in (167.89 mm I-Line connection line, Lugs load Current limiter ABC 65 kA 240 V AC, 35 kA 480 V AC, 18 kA 600 V AC Electr
Normally In Stock! Order now!
Condition: New
CALL FOR LEAD TIME
Price: $10249.50
Sale Price:
$4987.92
Schneider LGA36400CU33X Circuit breaker 400 A 3P 100 % I-Line CSA 22-2, CCC, IEC, CE, UL 489, NMX, NEMA PowerPact L 14.7 in (373.38 mm 5.94 in (150.88 mm 6.61 in (167.89 mm I-Line connection line, Lugs load Current limiter ABC 65 kA 240 V AC, 35 kA 480 V AC, 18 kA 600 V AC Electr
| Specifications | |
| Poles (Molded Case Breaker) | Three Pole |
| Interrupt Code (Molded Case Breaker) | G Interrupt Rating |
| Frame Type (Molded Case Breaker) | L Frame |
| Amperage (Molded Case Breaker) | 400 Amp |
| Maximum Voltage (Molded Case Breaker) | 600 VAC |
| UL Listing (Molded Case Breaker) | UL 489 |
| Mounting (Molded Case Breaker) | I-Line |
| Manufacturer | Schneider Electric |
| Manufacturer | Square D |
| Component | Molded Case Circuit Breaker |
| Interrupt Rating (Molded Case Breaker) | 65 kA 240 Volt |
| Interrupt Rating (Molded Case Breaker) | 35 kA 480 Volt |
| Interrupt Rating (Molded Case Breaker) | 18 kA 600 Volt |
