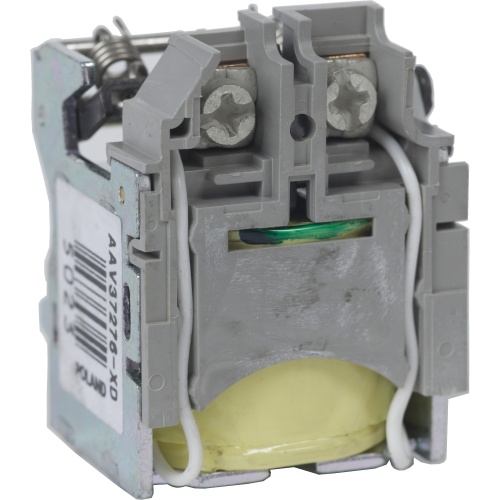

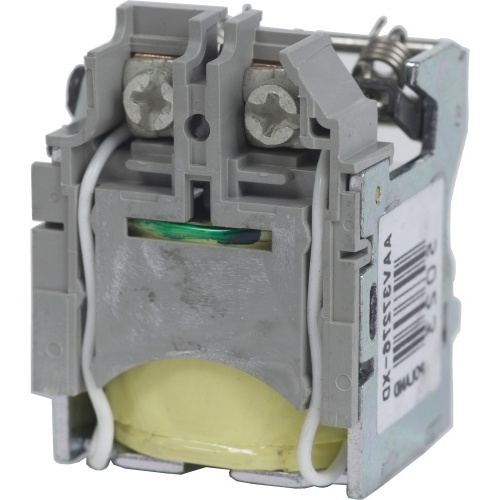

Schneider Electric S29388 380 TO 480VAC H/J/L-FRAME SHUNT TRIP
Normally In Stock
Code: 93758
Schneider S29388 Shunt trip H-frame, J-frame, L-Frame 380-480 V AC CSA Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. 12.39 lbf.in (1.4 N.m 0.00-0.00 in² (0.82-2.5 mm² AWG 18-AWG 14 01103 - H,J,C
Condition: New
CALL FOR LEAD TIME$664.06
Sale Price
$553.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider S29388 Shunt trip H-frame, J-frame, L-Frame 380-480 V AC CSA Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. 12.39 lbf.in (1.4 N.m 0.00-0.00 in² (0.82-2.5 mm² AWG 18-AWG 14 01103 - H,J,C
Specifications
Manufacturer
Square D
Component
Shunt Trip
Breaker Voltage Rating
380-480 VAC
Features

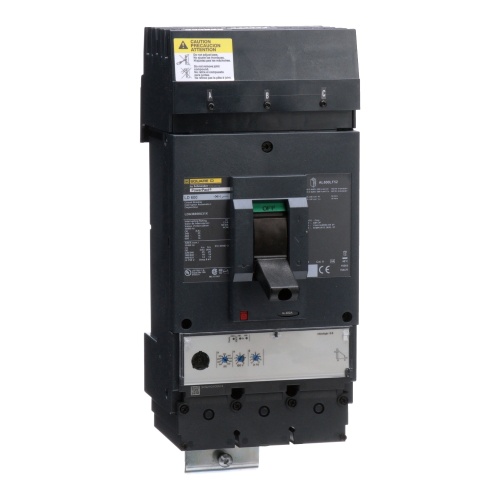

The PowerPact™ H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits
H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units
L-frame circuit breakers are available with Micrologic electronic trip units only
Shunt Trip (MX)
Trips the circuit breaker when the control voltage rises above 70% of its rated voltage
Impulse type ≥ 20 ms or maintained control signals
AC shunt trips are suitable for ground-fault protection when combined with a Class I ground-fault sensing element
Continuous duty rated coil.
