Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

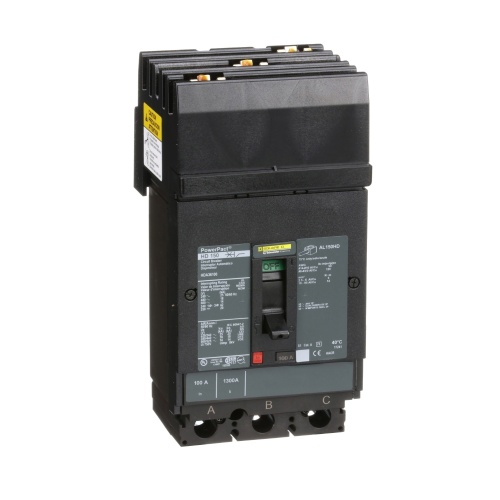

Schneider Electric HDA36100 Circuit breaker, PowerPact H, I Line, thermal magnetic, 100A, 3 pole, 600V, 14kA, phase ABC
Normally In Stock
Code: 92606

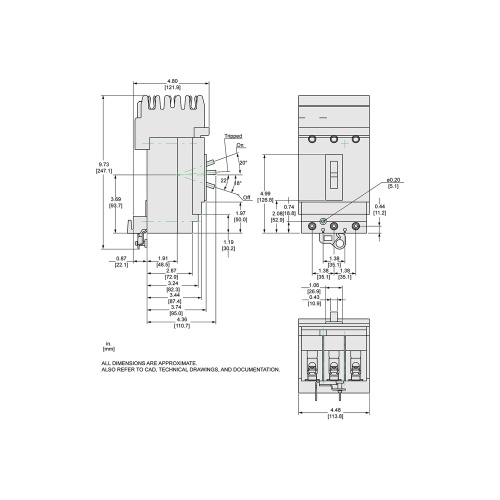

Schneider HDA36100 Circuit breaker 100 A 3P 80 % I-Line IEC, UL Listed, CSA, CE PowerPact H D 900 A 1700 A 9.73 in (247.14 mm 4.48 in (113.79 mm 4.8 in (121.92 mm 104 °F (40 °C ABC 250 V DC, 600 V AC I-Line connection line, Lugs load 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC
Condition: New
CALL FOR LEAD TIME$1260.49
Sale Price
$1050.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider HDA36100 Circuit breaker 100 A 3P 80 % I-Line IEC, UL Listed, CSA, CE PowerPact H D 900 A 1700 A 9.73 in (247.14 mm 4.48 in (113.79 mm 4.8 in (121.92 mm 104 °F (40 °C ABC 250 V DC, 600 V AC I-Line connection line, Lugs load 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC
Specifications
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Frame Type (Molded Case Breaker)
H Frame
Amperage (Molded Case Breaker)
100 Amp
Poles (Molded Case Breaker)
Three Pole
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
I-Line
Maximum Voltage (Molded Case Breaker)
250 VDC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
20 Ka 250 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
14 Ka 600 Volt
Features
Available in 2 or 3 pole design
Standard 80% or 100% rating
Available in Unit mount, I-line or Drawout constructions
