Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

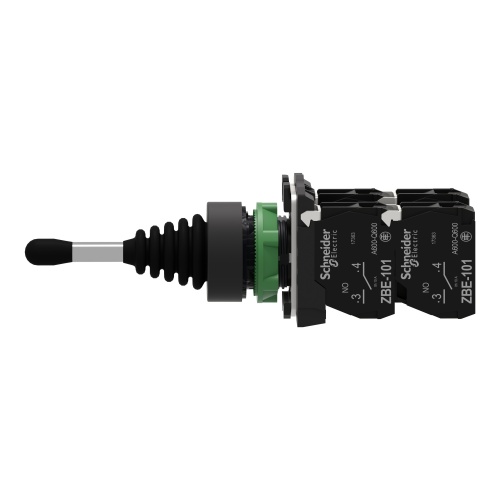

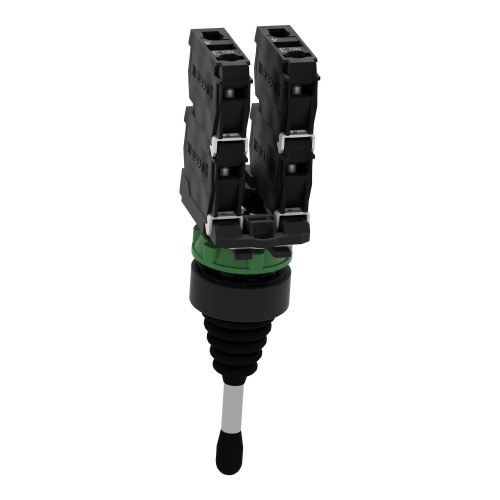

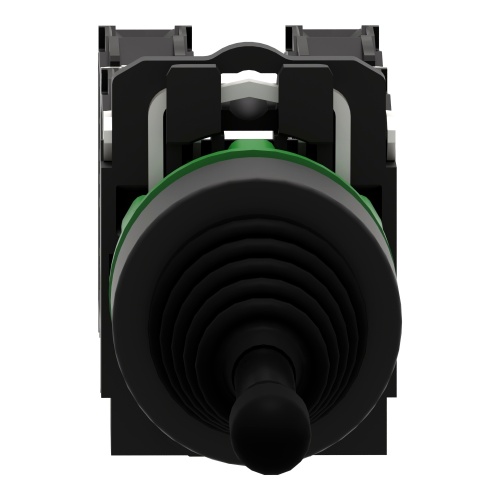

Schneider Electric XD5PA14 joystick controller Ø22 4-direction stay put 1NO per direction
Normally In Stock
Code: 87592
Schneider XD5PA14 stay put Joystick controller 1 NO 5 positions Plastic Round 54 mm long operating shaft Standard 4 directions 1 Harmony XB5 10 A EN/IEC 60947-5-1 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cy
Condition: New
CALL FOR LEAD TIME$355.45
Sale Price
$296.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
joystick controller Ø22 4-direction stay put 1NO per direction
Specifications
(Switching-Indication) Operation
Stay Put
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Operation
Slow-Break
(Switching-Indication) Composition
Plastic
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) IP Rating
IP 66
(Switching-Indication) Positions
5 Positions
(Switching-Indication) Amperage
0.1 Amp
Manufacturer
Schneider Electric
Component
Joystick
Features
Plastic bezel. Ideal for applications requiring good resistance to chemical agents and/or double electrical insulation

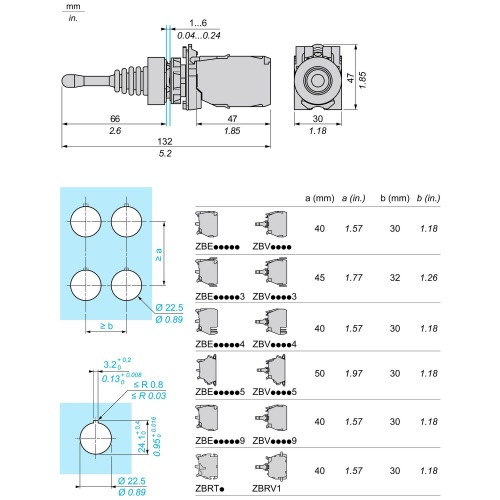

Designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery
Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product

Code: 87592
Schneider Electric XD5PA14 joystick controller Ø22 4-direction stay put 1NO per direction
$355.45
Sale Price
$296.21
