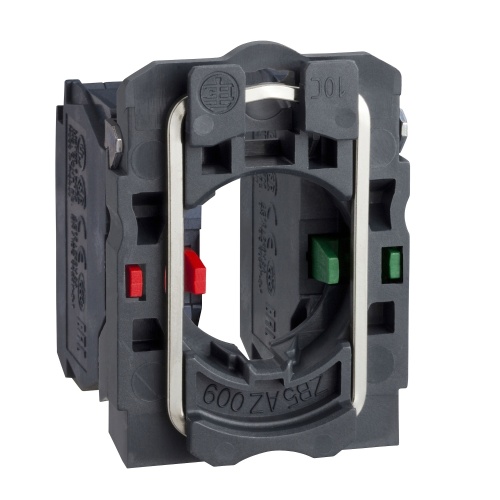

Schneider Electric ZB5AZ106 single contact block with body/fixing collar 1NO+1NC screw clamp terminal
Normally In Stock
Code: 85762
Schneider ZB5AZ106 Complete body/contact assembly 1 NO + 1 NC Single Standard contacts 5 Harmony XB5 Standard Body, Fixing collar 10 A EN/IEC 60947-5-1 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/
Condition: New
CALL FOR LEAD TIME$56.74
Sale Price
$47.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
single contact block with body/fixing collar 1NO+1NC screw clamp terminal
Specifications
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Size
22 mm
(Switching-Indication) Amperage
6 Amp
(Switching-Indication) Profile
Standard
(Switching-Indication) Composition
Plastic
(Switching-Indication) Composition
Silver Alloy(Ag/Ni)
(Switching-Indication) Contacts Connection Type
Screw Clamp Terminals
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Contact Configuration
1 NO + 1 NC
(Switching-Indication) IP Rating
IP 20
(Switching-Indication) Operation
Overlapping
Sub Component
Light Module
Manufacturer
Schneider Electric
Component
Accessories
Features
This Harmony ZB5AZ106 is a single contact block with body/fixing collar 1 NO + 1 NC screw clamp terminal
It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.
Code: 85762
Schneider Electric ZB5AZ106 single contact block with body/fixing collar 1NO+1NC screw clamp terminal
