Code: 840535

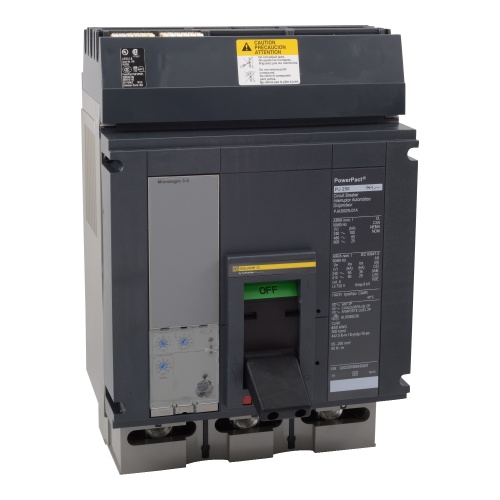

Schneider Electric PJA36025U44A Circuit breaker, PowerPacT P, 250A, 3 pole, 600VAC, 25kA, I-
Normally In Stock
Schneider Electric PJA36025U44A Circuit breaker, PowerPacT P, 250A, 3 pole, 600VAC, 25kA, I-
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$26783.08
Sale Price
$22319.23
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Circuit breaker, PowerPacT P, 250A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 6.0A, 100%, ABC
Specifications
Poles (Molded Case Breaker)
Three Pole
Amperage (Molded Case Breaker)
250 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Features
Available in 2-3-4 pole design.
Available from 100-1200 A, up to 600 Vac.
nterrupting ratings (AIR) include G-35 kA, J-65 kA, K-50 kA and L-100 kA at 480Vac.
Available in standard (80%) or 100% rating.
Available with Micrologic® trip units with power metering and monitoring capabilities.
Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPacT M- and P-frame circuit breakers.
Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes.
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility.
Optional Ground Fault protection with nine adjustable ground fault pickup levels and five tripping delays using Micrologic 6.0 trip unit.
PG, PJ, PL have zone-selective interlocking capability (ZSI). Micrologic trip unit 5.0 has short-time ZSI and 6.0 has both short-time and ground-fault ZSI.
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications.
• IEC Style Rotary Operating Handles
NEMA 9421 Door Mounted Rotary Operating Mechanism.
NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated.
Available in Unit-mount, I-line, and drawout (factory-installed option only) constructions.
2-3 pole automatic molded case switches available at up to1200 A.
UL 489 Listed, CSA, NMX, IEC certified for worldwide applications.
