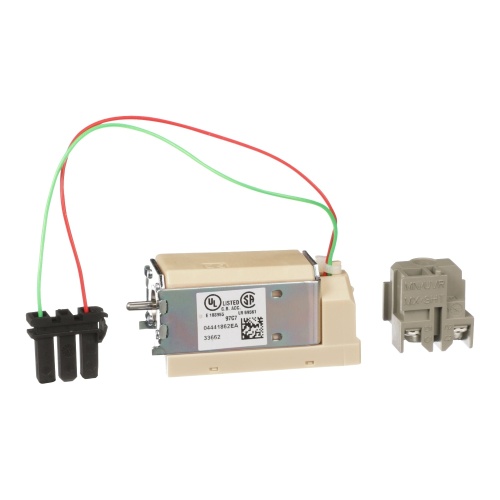

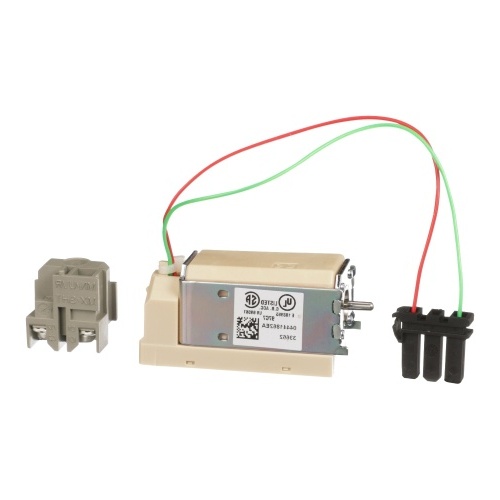

Schneider Electric S33662 220 TO 240VAC 250VDC M/P/R-FRAME SHUNT TRIP
Normally In Stock
Code: 93761
Schneider S33662 Shunt trip M-frame, R-Frame, P-frame 220-240 V AC, 250 V DC CSA Pro-active compliance (Product out of EU RoHS legal scope, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. 30.98 lbf.in (3.5 N
Condition: New
Normally Stocked$699.25
Sale Price
$582.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider S33662 Shunt trip M-frame, R-Frame, P-frame 220-240 V AC, 250 V DC CSA Pro-active compliance (Product out of EU RoHS legal scope, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. 30.98 lbf.in (3.5 N
Specifications
Breaker Voltage Rating
250 VDC
Breaker Voltage Rating
220-240 VAC
Manufacturer
Square D
Component
Shunt Trip
Features
PowerPact M-frame molded case circuit breakers provide improved performance and a compact solution for applications up to 800A
They complement the existing PowerPact P- and R-frame circuit breakers and replace the traditional MA/MH circuit breakers with a smaller footprint and competitive cost
PowerPact M-frame molded case circuit breakers have built-in electronic trip unit type ET 1.0 provides better accuracy than standard thermal-magnetic trip units
The ET 1.0 trip unit cannot be field replaced, nor does it allow adjustment of the trip point setting
(It is considered an electronic equivalent of a thermal-magnetic circuit breaker.),They also have fIxed long-time and adjustable instantaneous protection (2 to 10 times nominal ampere rating) is standard
Powerpact M-Frame breakers have the same dimensions, common mounting, bussing, cabling and door cut-out as PowerPact P-frame circuit breakers
This Powerpact M,P,R shunt trip is rated at 220-240 VAC and 250 VDC
This product comes with an 18 month warranty.
