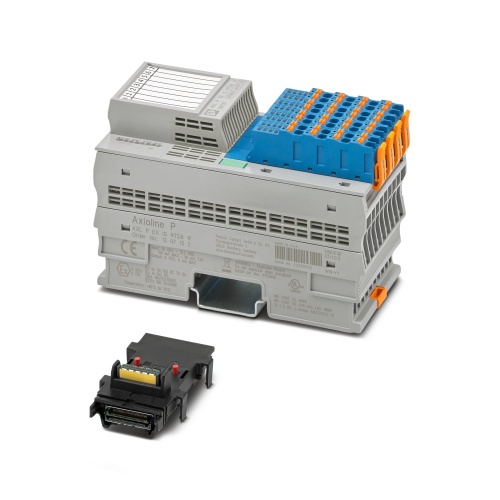

Phoenix Contact 1397157 Temperature module AXL P EX IS RTD8 1F
Normally In Stock
Code: 836919
Phoenix 1397157 Temperature module AXL P EX IS RTD8 1F
Condition: New
Usually ships within 7-14 days. Call for ship time.*NON-CANCELLABLE, NON-RETURNABLE*
$920.16
Sale Price
$766.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1397157 The Axioline P temperature recording module features eight analog inputs for resistance temperature detectors, utilizing a 2-, 3-, or 4-conductor shielded connection technology with a local bus transmission speed of 100 Mbps. The module also supports RTD functionality, is intrinsically safe, and has an IP20 degree of protection rating, including the base bus module and Axioline P connectors.
Specifications
PLC & IO Degree of Protection
IP20
PLC & IO Transmission Speed
100 Mbps
PLC & IO Connection Method
Push-In Connection
Manufacturer
Phoenix Contact
PLC & IO Type
Axioline P
Component
Temperature Module
Features
8 analog input channels for the connection of resistance temperature detectors (RTD)
500 Ω, 5 kΩ, and 10 kΩ linear inputs

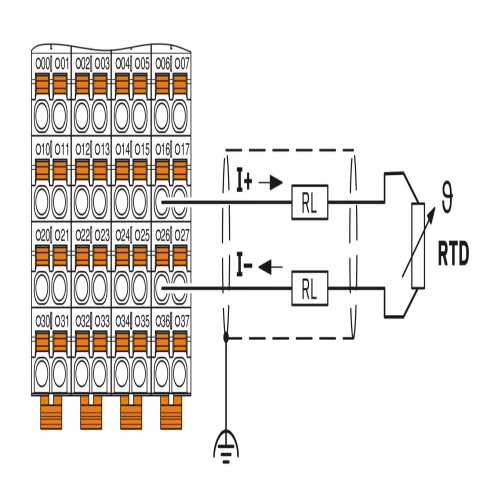

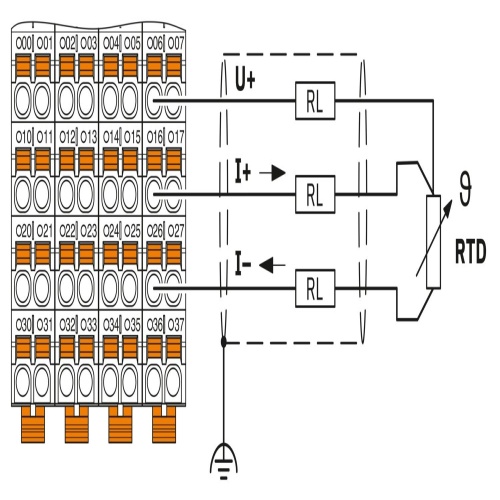

Connection of sensors in 2-, 3-, and 4-conductor technology
Integrated, digital sensor linearization
Standardized measured value representation directly in °C, °F or Ω
Measured value display in 16-bit format or floating point format
Programmable filters
Short-circuit protected inputs
Temperature stability
Very high level of noise immunity
Low noise emission
Can be used under extreme ambient conditions
Extended temperature range of -40°C ... +70°C
Hot-swappable
Device rating plate stored
