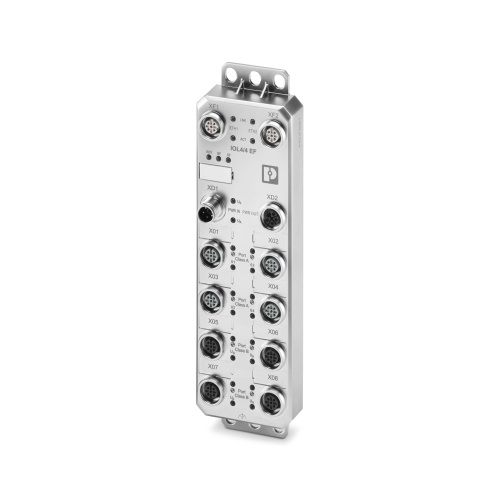

Phoenix Contact 1300926 Communication module AXL E PN IOL4/4 EF M12 6M-L
Normally In Stock
Code: 836884
Phoenix 1300926 Communication module AXL E PN IOL4/4 EF M12 6M-L
Condition: New
Usually ships within 7-14 days. Call for ship time.$561.91
Sale Price
$468.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

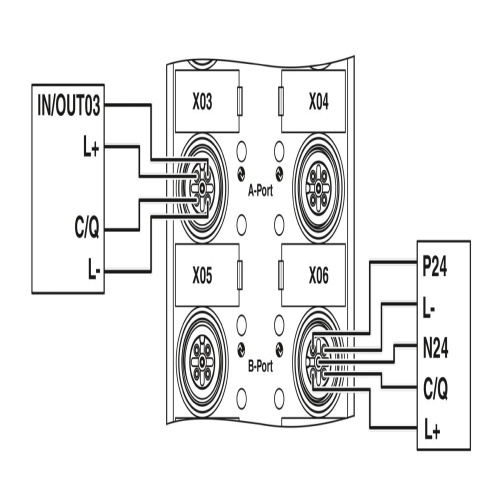

Phoenix Contact 1300926 The specified device features an IO-Link master with PROFINET capabilities, utilizing an M12 connector with D-coded and A-coded settings for Class A ports, offering a 3-conductor connection technology. For Class B ports, it uses a 5-conductor connection method with digital inputs at pin 2, providing 4 channels of 24V DC signals, and 2 A of 2-conductor outputs also at pin 2. The device is designed to provide IP65/IP67/IP69 protection levels.
Specifications
PLC & IO Connection Method
M12 Connector
PLC & IO Transmission Speed
100 Mbps
Manufacturer
Phoenix Contact
Component
Communication Module
PLC & IO Type
Axioline E
PLC & IO Degree of Protection
IP65/IP67/IP69
Features
Connection with M12 connectors with push-pull fast connection or screw connection
Mapping in accordance with PROFINET specification V2.4 as PROFINET device (Conformance Class C (IRT switch))
PROFINET system redundancy S2 supported
PROFINET supported with min. cycle time of 1 ms
IO-Link specification V1.1.2
2 Ethernet ports (with integrated switch)
Transmission speed of 100 Mbps
Short-circuit and overload protection
IP65/IP67/IP69 degree of protection
