Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Downloads

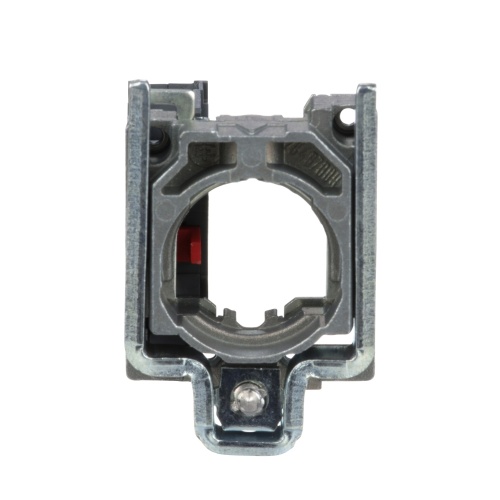

Schneider Electric ZB4BZ102 Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NC, screw clamp terminal
Schneider ZB4BZ102 Complete body/contact assembly 1 NC Single Standard contacts 1 Harmony XB4 Standard Body, Fixing collar 10 A EN/IEC 60947-5-1 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 6
Normally In Stock! Order now!
Condition: New
Normally Stocked
Price: $30.80
Sale Price:
$23.61
Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NC, screw clamp terminal
| Specifications | |
| (Switching-Indication) Size | 22 mm |
| (Switching-Indication) Amperage | 6 Amp |
| (Switching-Indication) Profile | Standard |
| (Switching-Indication) Operation | Slow-break |
| (Switching-Indication) Composition | Silver alloy(Ag/Ni) |
| (Switching-Indication) Contacts Connection Type | Screw Clamp Terminals |
| (Switching-Indication) UL Rating | UL 508 |
| (Switching-Indication) Composition | Zamak |
| (Switching-Indication) IP Rating | IP 20 |
| (Switching-Indication) Contact Configuration | 1 NC |
| Sub Component | Push Button Contact Block with Mounting Collar |
| Manufacturer | Schneider Electric |
| Component | Accessories |
