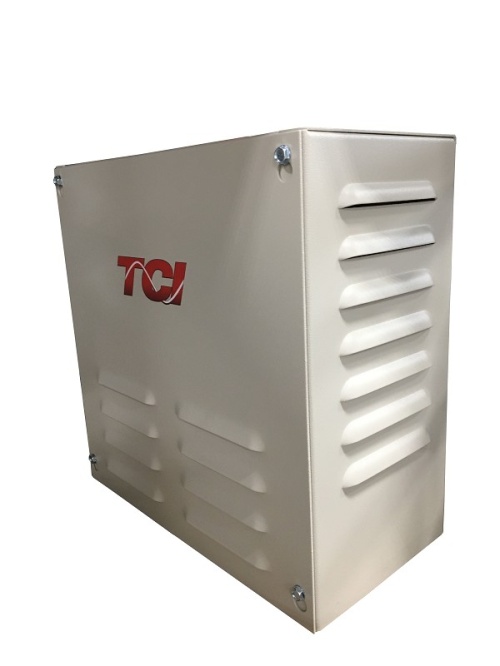

TCI KDRF3TE3R (KDR) Line Reactor with 10% impedance 480 Volt 3 Phase 34 Amp 25 HP
Normally In Stock
Code: 83155
TCI KDRF3TE3R (KDR) Line Reactor with 10% impedance 480 Volt 34 Amp 25 HP Type 3R enclosure.
Condition: New
Usually Ships within 2-4 weeks*NON-CANCELLABLE, NON-RETURNABLE*
$1334.38
Sale Price
$1111.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
KDR line reactors 10% impedance UL Recognized.
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Includes Heater
No Heater
VFD Filter Horsepower
25 HP
VFD Filter Line
(KDR) Reactor
VFD Filter Impedance
10%
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Enclosure
UL Type 3R
Features
Impedance Protection: Low “Z” and High “Z”
System Voltage: 208/240 VAC, 480 VAC, 575/600 VAC, 690 VAC
Ambient Temperature: 50° C (122° F) – Open
40° C (104° F) – Enclosed
Altitude (Maximum): 2,000 meters (6,000 feet) – Derating necessary above 2,000 meters
Fundamental Frequency: 50/60 Hz
Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
Agency Approvals: cULus Listed, CE Marked
Inductance Characteristics: Minimum 95% L at 110% Load
Minimum 80% L at 150% Load
Input and Output: Available for either the line or load side of a VFD
