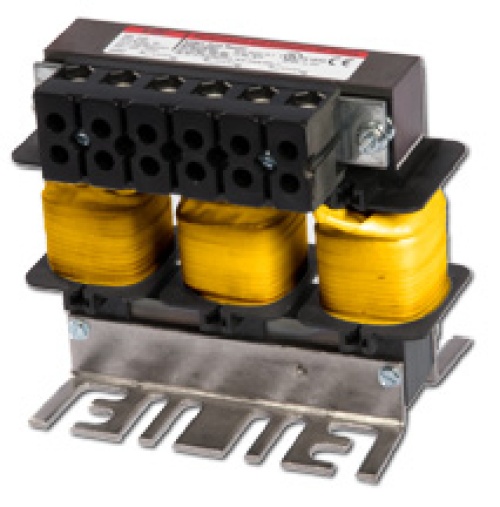

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
TCI KDRX5T (KDR) Line Reactor with 10% impedance 480 Volt 3 Phase 590 Amp 500 HP
Normally In Stock
Code: 83145
TCI KDRX5T (KDR) Line Reactor with 10% impedance 480 Volt 590 Amp 500 HP Open enclosure.
Condition: New
Usually Ships within 2-4 weeks*NON-CANCELLABLE, NON-RETURNABLE*
$7768.07
Sale Price
$6473.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
KDR line reactors 10% impedance UL Recognized.
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Enclosure
Open
VFD Filter Includes Heater
No Heater
VFD Filter Horsepower
500 HP
VFD Filter Line
(KDR) Reactor
VFD Filter Impedance
10%
VFD Filter Protected Side
Line Side (In)
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
Features
Impedance Protection: Low “Z” and High “Z”
System Voltage: 208/240 VAC, 480 VAC, 575/600 VAC, 690 VAC
Ambient Temperature: 50° C (122° F) – Open
40° C (104° F) – Enclosed
Altitude (Maximum): 2,000 meters (6,000 feet) – Derating necessary above 2,000 meters
Fundamental Frequency: 50/60 Hz
Short Term Overload Rating: Tolerate 200% rated I for a maximum of 3 minutes
Agency Approvals: cULus Listed, CE Marked
Inductance Characteristics: Minimum 95% L at 110% Load
Minimum 80% L at 150% Load
Input and Output: Available for either the line or load side of a VFD
