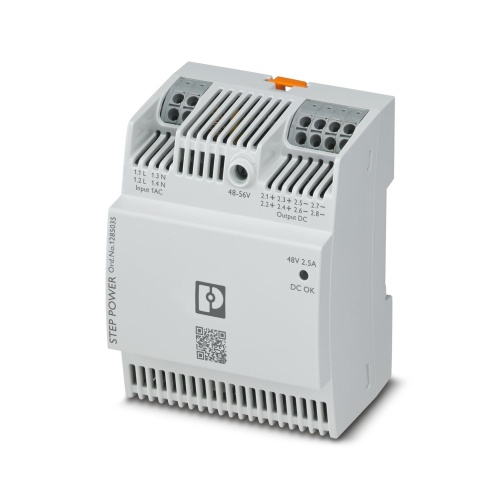

Phoenix Contact 1285035 Power supply STEP3-PS/1AC/48DC/2.5/PT
Normally In Stock
Code: 830678
Phoenix 1285035 Power supply STEP3-PS/1AC/48DC/2.5/PT
Condition: New
Usually ships Same Day or Next Day$95.09
Sale Price
$55.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1285035 The STEP POWER power supply unit is a primary-switched design that can be easily installed via a push-in connection or mounted directly to a DIN rail. It accepts a single-phase input and provides an output of 48V DC at 2.5A, which can be adjusted up to 56V DC. Additionally, it supports Power over Ethernet (PoE) applications with a maximum power delivery of up to 120W.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Voltage Output
48 VDC
Component
Power Supply
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Voltage Input Range
125 VDC - 250 VDC
Features
Energy savings with the highest level of efficiency in no-load and part-load operation (Efficiency Level VI)
Space savings in the control cabinet due to the narrow design combined with increased performance (up to 100%)
Approval for household purposes (EN 60335) allows use in domestic applications
Quick and easy startup with tool-free Push-in connection technology at a 45° angle with double terminal points

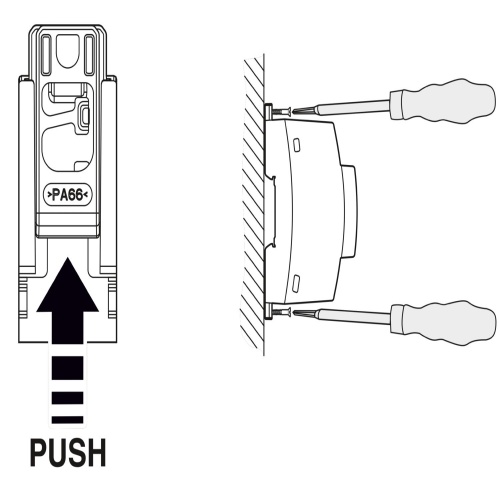

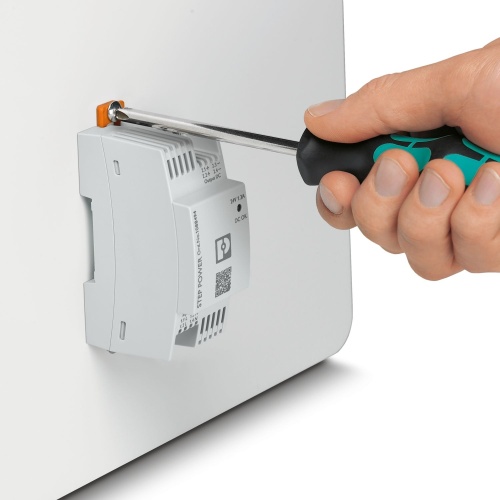

Flexible mounting: Snap onto a DIN rail or screw onto a level surface
