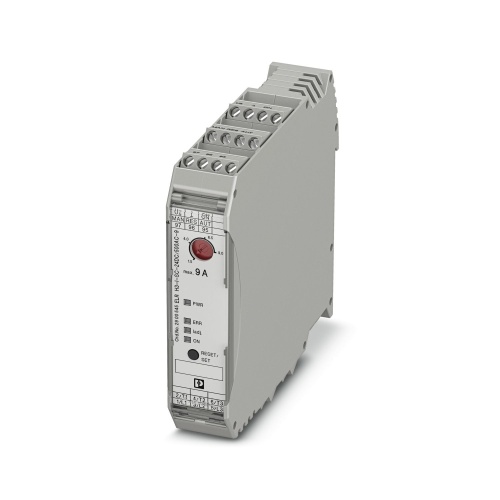

Phoenix Contact 2900545 Hybrid motor starter ELR H3-I-SC- 24DC/500AC-9
Normally In Stock
Code: 83052
Phoenix 2900545 Start motor,Motor protection,Emergency Stop/Shutdown 1.5 Amp - 9 Amp (see to derating) Screw connection Hybrid motor starter
Condition: New
Usually ships Same Day or Next Day$252.83
Sale Price
$210.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900545 This hybrid motor starter is designed to start AC motors with a power rating of 3~500V AC and an output current of up to 9A, controlled by a 24V DC voltage source that also features adjustable overload protection and can be screwed into place for easy installation.
Specifications
Motor Component
Hybrid Motor Starter
Motor Function
Start Motor
Motor Function
Motor Protection
Motor Function
Emergency Stop-Shutdown
Motor Connection Method
Screw Connection
Motor Approval
IEC 60947-1
Motor Approval
IEC 60947-4-2
Motor Approval
IEC 61508
Motor Approval
ISO 13849
Motor Output Voltage
500 VAC
Motor Input Voltage
24 VDC
Manufacturer
Phoenix Contact
Motor Load Current

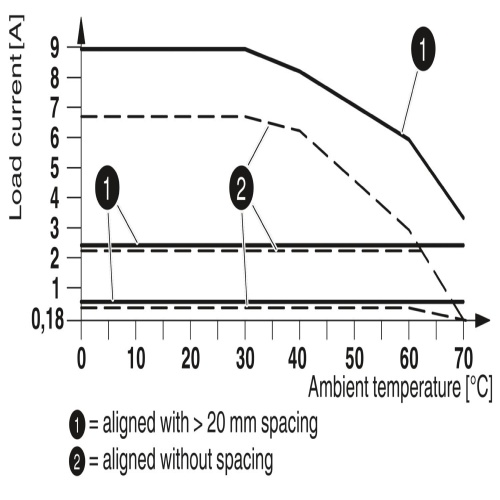

1.5 Amp - 9 Amp (See To Derating)
Features
Long service life
Low-wear switching
Reduction in wiring
22.5 mm wide
Space saving
3-phase loop bridges
Adjustable current for bimetal function
