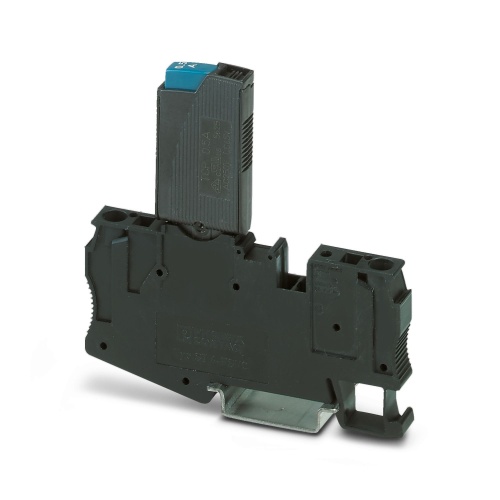

Phoenix Contact 0712194 Thermal device circuit breaker TCP 1A
Normally In Stock
Code: 736080
TCP 1A Phoenix 0712194 Thermal device circuit breakers 1 Amp on base element Protective Devices
Condition: New
Usually ships Same Day or Next Day$20.12
Sale Price
$16.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0712194 A one-channel thermal device circuit breaker is designed to safeguard loads of up to 250V AC or 72V DC from overloads, featuring a fixed nominal current rating of 1A and suitable for use on fuse terminal blocks and flat plug-in fuses of type C as per the ISO 8820-3 standard.
Specifications
Breaker Amperage Rating
1 Amp
Breaker Number of Poles
Single Pole
Manufacturer
Phoenix Contact
Component
Thermomagnetic Device Circuit Breaker
Features
Fast, replacement part-free recommissioning after an event with the reconnection options
Easy to retrofit in existing systems with vehicle flat-type fuses with identical pin connector pattern
System disconnection for maintenance actions via the integrated device switch
Downloads
000292280_02_ULCompUS_FILEE140459.pdf000292281_02_ULCompCA_FILEE140459.pdf001253369_01_CCCCN_2025010307749780.pdf001492652_01_UAERoHS_23-10-88896.pdf083130646_04_DoC_EU.pdf097107247_02_DoC_UK.pdfcoc document.pdfdocumentation of the ecological footprint.pdfdocumentation of the ecological footprint.stpdownloads.htm (1).crdownloaddownloads.htm.crdownloadeu declaration of conformity.pdfPhoenix 0712194 CAD data International.dxfPhoenix 0712194 CAD data International.pdfPhoenix 0712194 CAD data International.stpPhoenix 0712194 CAD Drawing.zipPhoenix 0712194 Data Sheet English-2.pdfPhoenix 0712194 Data Sheet English.pdfPhoenix 0712194 Flyer English.pdfPhoenix 0712194 Manufacturers declaration International.pdfPhoenix 0712194 Spec Sheet.pdfPhoenix 0712194 Tender Text English.zipPhoenix 0712194 User Manual.pdfPhoenix 0712194 Various English.pdfproduct drawing.dxfproduct drawing.pdfsimplified 3d model of the item.pdfsimplified 3d model of the item.stpuk declaration of conformity.pdf
