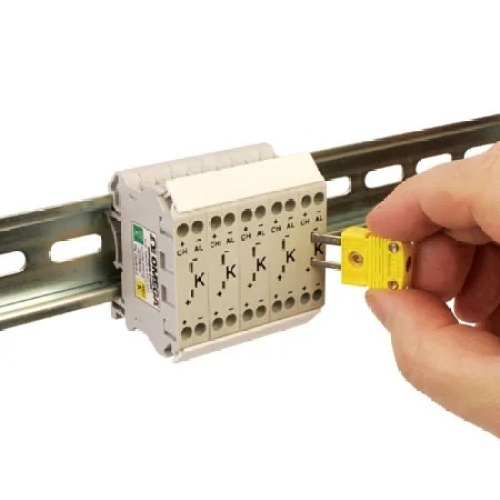

Omega DRTB-E-2 Thermocouple Terminal Block
Normally In Stock
Code: 820361
Omega DRTB-E-2 Thermocouple Terminal Block
Condition: New
Usually ships Same Day or Next Day$38.98
Sale Price
$32.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thermocouple Terminal Block, DIN Rail, Type E, 24 AWG to 16 AWG, 10.7 mm (0.422 "), Purple, 8 mm (0.31 "), DRTB-2 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Thermocouple Terminal Block
Features
UL Component Recognized
Type K, J, T, E, N, R/S and U Calibrations
Screw Type Terminal for Secure and Maintenance Free Connections

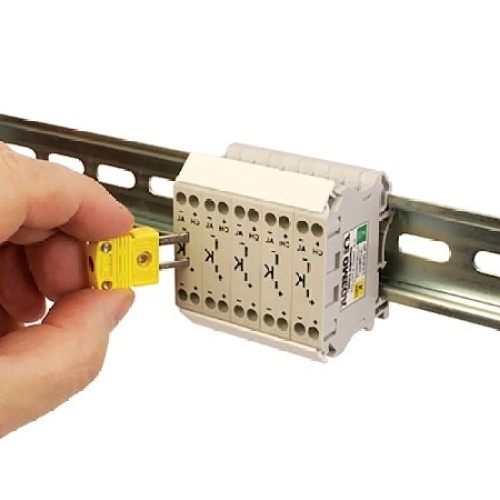

Built-In Miniature Female Thermocouple Connector for Auditing and Troubleshooting
Additional Features 1DIN Rail Mountable
Amperage, Max0 A
Height42.3 mm
Insulation Strip Length8 mm
Length52.8 mm
Operating Temperature, Max85 °C
Operating Temperature, Min-40 °C
Tightening Torque0.4 ± 10% Nm
Voltage RatingN/A
Width10.7 mm
Wire Gauge24 to 16 AWG
