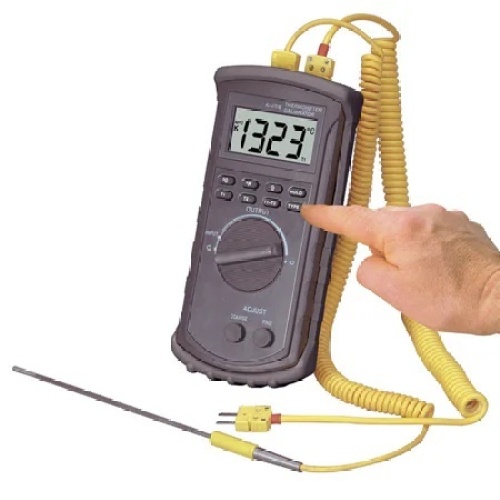

Omega CL3512A Handheld Calibrator
Normally In Stock
Code: 801655
Omega CL3512A Handheld Calibrator
Condition: New
Usually ships Same Day or Next Day$503.06
Sale Price
$419.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Temperature Calibrator & Thermometer, ± 0.01 % rdg+1 °C (1.8 °F) Accuracy, Supports K, J, E, T Types, 100 hours, CL3512A Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Handheld Calibrator
Features
8-Point, NIST-Traceable Calibration Certificate
Large 31/2 Digit Display
Type J/K/T/E TC Calibrator and Thermometer
Range -220 to 1372°C (-364 to 1999°F)
Accuracy± 0.1 %
Accuracy Detail± (0.1% rdg + 1°C) Accuracy is specified for operating temperatures from 18 to 28°C (64 to 82°F), for 1 year, not including thermocouple error
± (0.1% rdg + 1°C) range -60 to 1372°C [± (0.1% rdg + 2°F) range -76 to 1999°F]
± (0.1% rdg + 2°C) range -60 to -220°C[± (0.1% rdg + 4°F) range -76 to -364°F]
Auto-Ranging0.1° to 1°
Auto-Ranging Note0.1° to 1° resolution above 199.9 (°C or °F)
Battery IndicationA low battery indication is displayed when the battery voltage drops below the operating level
Battery life100 hr
Display TypeLCD
Display Type Note3 1⁄2 digit LCD with a maximum reading of 1999.
Overrange: (-OL) is displayed.
Zero: Automatic
Height195 mm
Length53 mm
Operating Temperature, Min0 °C
Operating Temperature Note0 to 50°C (32 to 122°F) @ <80% RH
PolarityAutomatic, positive implied, negative polarity indication
Relative Humidity, Max0.8
Relative Humidity, Min0%
Resolution, Max1 °C
Resolution, Min0 °C
Resolution Note0.1 (to 199.9) or 1°
Sampling Rate1 Hz (1 update/second)
Simulation AccuracyMeasurement Accuracy + 1°C
Storage Temperature, Max60 °C
Storage Temperature, Min-20 °C
Storage Temperature Note-20 to 60°C (-4 to 140°F), 0 to 80% RH with battery removed from meter
Supply Voltage9 Vdc
Thermocouple TypeJ, K, T, E
Type of RTD SignalNone
Weight250 g
Weight NoteApproximately 250 g (9 oz)
Width92 mm
