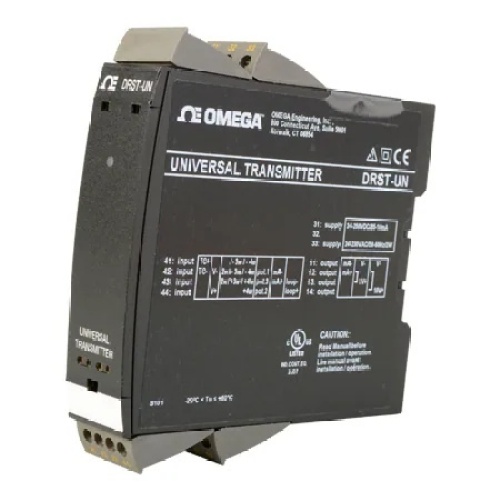

Input for RTD, TC, O, potentiometer, mA and V

2-wire supply 16 V

UL and cUL Approval

Output for current and voltage

Accuracy± 0.1 %

ApprovalsUL: UL 508/C22.2 no. 14

NV-GL Marine Stand. f. Certific. No. 2.4

EU RO Mutual Recognition Type

Approval: MRA000000Z

SIL Hardware assessed for use in SIL applications

Authority Requirements:EMC: 2014/30/EU, LVD: 2014/35/EU, EAC: TR-CU 020/2011

Calibration Temperature, Max28 °C

Calibration Temperature, Min20 °C

Cold Junction Compensation20 to 28°C = ±1°C, -20 to 20°C/28 to 70°C = 2°C

Electrical Output0 to 20 mA, 0 to 10 Vdc

EMC Immunity NoteStandard EMC Imunity: <±0.5% of span

Extended EMC Immunity: NAMUR, NE21, A Criterion, Burst: <±1% of span

Wire Size: 1 x 2.5 mm²

EMC StandardEN61010-1, EN61326-1

Enclosure RatingsIP20

Fuse Rating250 Vac/400 mA

Height109 mm

Input Control Signal0 to 12 Vdc

Input Control Signal NoteMeasurement Range: 0 to 12 Vdc

Programmable Measurement Ranges: 0/0.2 to 1, 0/1 to 5, 0/2 to 10 Vdc

Input Current0 to 20 mA

Input_Current NoteProgrammable Measurement Ranges: 0 to 20 and 4 to 20 mA

Input Resistance: Nom. 20 Ω + PTC 50 Ω Sensor Error Detection: Loop

Break 4 to 20 mA: Yes

Input ResistanceVoltage : Nom. 10 MΩ, Current: Nom. 20 Ω + PTC 50 Ω

IsolationTest/Working: 2.3 kVac/250Vac

Length104 mm

Operating Temperature, Max60 °C

Operating Temperature, Min-20 °C

Output DetailSignal Range: 0 to 20 mA

Programmable Signal Ranges: 0 to 20/4 to 20/20 to 0/20 to 4 mA

NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA

Output Limitation, on 4 to 20 and 20 to 4 mA signals: 3.8 to 20.5 mA

Output Limitation, on 0 to 20 and 20 to 0 mA signals: 0 to 20.5 mA

Signal Range: 0 to 10 Vdc

Programmable Signal Ranges: 0/0.2 to 1

0/1 to 5

0/2 to 10

1 to 0.2/0

5 to 1/0

10 to 2/0 V

Output SignalCurrent, Voltage

Potentiometer Input Range10 to 100 kΩ

Power Consumption2 W

Relative Humidity< 95% RH Non-Condensing

Response Time1 sec

Response Time NoteThermocouple: 1 sec, Current/Voltage: 400msec

RTD Input NoteEffect of Sensor Cable Resistance: < 0.002 Ω/Ω (3/4-wire)

Cable Resistance, Per Wire: 50 Ω

Sensor Current: 0.2 mA

Short Circuit Protection: < 15 Ω

Sensor Error Current: 2 µA / 0 µA

RTD Type10/20/50/100/200/250/300/400/500/1000 Ω Pt Sensor, 50/100/120/1000 Ω Ni Sensor, 10/20/50/100 Ω Cu Sensor

Screw Terminal Torque0.5 Nm

Sensor/Transmitter Power5 to 16 Vdc/0 to 20 mA

Signal/Noise Ratio> 60 dB

Storage Temperature, Max85 °C

Storage Temperature, Min-20 °C

Supply Power Note21.6 to 253 Vac, 50 to 60 Hz or 19.2 to 300 Vdc

Supply Power TypeAC/DC

Supply Voltage21.6 to 253 Vac, 19.2 to 300 Vdc

Temperature Coefficient≤±0.01% of span/°C

Temperature Measurement RangeJ: -100 to 1200°C, K: -180 to 1370 °C, T: -200 to 400 °C, E: -100 to 1000 °C, R: -50 to 1760 °C, S: -50 to 1760 °C, N: -180 to 1300 °C, B: 0 to 1820 °C, W3: 0 to 2300 °C, W5: 0 to 2300 °C, L: -200 to 900 °C, LR: -200 to 800 °C, RTD: -200 to 850 °C

Thermocouple TypeJ, K, T, E, R, S, B, C, N, L, U, D, LR

Vibration±0.7 g

Vibration NoteIEC 60068-2-6

2 to 13.2 Hz: ±1 mm

13.2 to 100 Hz: ±0.7 g

Weight145 g

Width23.5 mm

Wire TypeStranded
