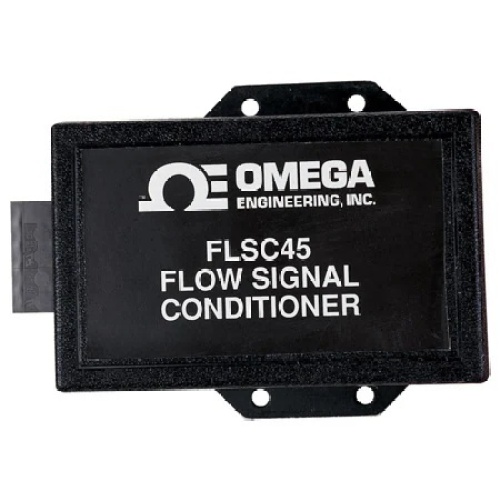

Omega FLSC-45B FLOW SIGNAL CONDITIONER
Normally In Stock
Code: 790179
Omega FLSC-45B FLOW SIGNAL CONDITIONER
Condition: New
Usually ships Same Day or Next Day$622.84
Sale Price
$519.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Flow Signal Conditioner, High Performance, Sine Wave I/P, 4 mA to 20 mA/1 Vdc to 5 Vdc O/P, Rugged, Die-Cast NEMA 4 (IP65) Aluminum, Each
Specifications
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Output Signal Range
1-5 Vdc
Conditioner Input Signal Type
Sinewave
Features
± 0.15% Accuracy
4 to 20 mA or 1 to 5 Vdc Field Selectable Output
FLSC-45: Plastic Enclosure for Wall Mounting
FLSC-45B: Die-Cast Aluminum Housing with NEMA-4 (IP65) Rating
Accuracy± 0.15 %
Electrical Output4 to 20 mA, 1 to 5 Vdc
Enclosure RatingsIP65, NEMA 4
Height65 mm
Input Range20 mV p-p min
Input TypeSinewave
Length32 mm
Loop Resistance, Max(Vs -10V) / 0.020 A
MaterialsAluminum
MountingWall Mount
Number of Wires3
Operating Temperature, Max60 °C
Operating Temperature, Min-20 °C
Repeatability± 0.025%
Response Time2 sec
Storage Temperature, Max70 °C
Storage Temperature, Min-25 °C
Supply PowerCurrent Output: 10 to 24 Vdc/ Volltage Output: 15 to 24 Vdc
Supply Power TypeDC
Weight300 g
Width116 mm
