Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

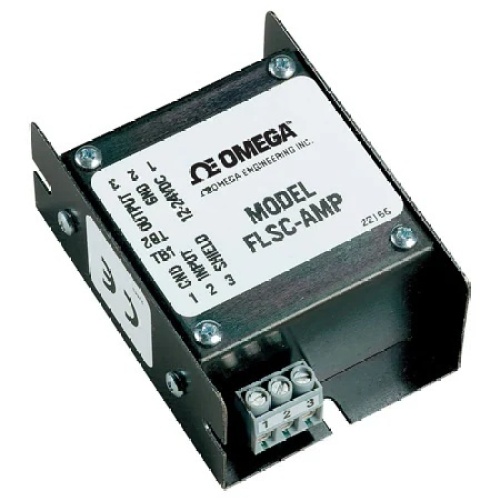

Omega FLSC-AMP AMPLIFIER
Normally In Stock
Code: 790081
Omega FLSC-AMP AMPLIFIER
Condition: New
Usually ships Same Day or Next Day$183.35
Sale Price
$152.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Low Level Amplifier, DC Supply, 20 mV to 50 V I/P, 110 Vac O/P, Bridge, Strain I/P & Open Collector O/P Class, Ultra Low Speed to 15 kHz Operation, Each
Specifications
Conditioner Input Signal Type
Voltage
Component
Amplifier
Manufacturer
Omega Engineering
Features
Ultra Low Speed to 15 kHz Operation
20 mV to 50 V Sensitivity
100 mA Current Sinking Output
11 to 26 Vdc Power Supply Range
Height35.6 mm
Impedance Input1500 Ω
Input Range0.020 to 50 V
Input TypeVoltage
Length76.2 mm
Operating Temperature, Max60 °C
Operating Temperature, Min0 °C
Output DetailOpen Collector with internal 2700 ohms pull-up resistor to supply voltage. 100 mA Maximum sink to 1 v or less
Supply Power11 to 26 Vdc
30mA Max
Supply Power TypeDC
Width55.9 mm
Code: 790081
Omega FLSC-AMP AMPLIFIER
$183.35
Sale Price
$152.79
