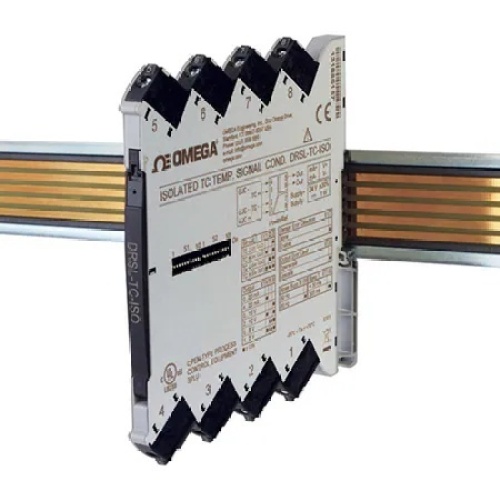

Omega DRSL-TC T/C INPUT SIG COND CE
Normally In Stock
Code: 790175
Omega DRSL-TC T/C INPUT SIG COND CE
Condition: New
Usually ships Same Day or Next Day$242.45
Sale Price
$202.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, Thermocouple, DC Supply, J -100 °C to 1200 °C, K -180 °C to 1372 °C I/P, Temperature I/P & Process O/P Class, DRSL-TC Series, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Supply Voltage
16.8-31.2 Vdc
Features
DRSL-TC Non-Isolated and DRSL-TC-ISO Isolated Models
Accepts Type J and Type K Thermocouples
Pre-Calibrated Temperature Ranges Selectable via Dip-Switches
Slimline Housing—Only 6 mm (0.24') Wide
ApprovalsCE, UL, RoHS
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Electrical Output4 to 20 mA
EMC Immunity NoteNAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height113 mm
InstallationPollution degree 2 and measurement/overvoltage category II
LED IndicatorsGreen LED indicates operational status of the unit and input sensor
Length115 mm
Load ResistanceVoltage Output :>10 kΩ min,
Current Output: 21 mA/600 Ω /12.6V max
MountingDIN Rail 35 mm Standard, EN 60715
Operating Temperature, Max70 °C
Operating Temperature, Min-25 °C
Output ValueProcess
Power Consumption0.7 W, Internal - 0.65 W
Relative Humidity0 to 95% RH (non-condensing)
Screw Terminal Torque0.5 Nm
StabilityLoad Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Weight70 g
Width6.1 mm
Wire Gauge26 to 12 AWG
